Middle Size Window Lifter Motor Starter Tester Armature Testing Machine for 100 Sets/Year

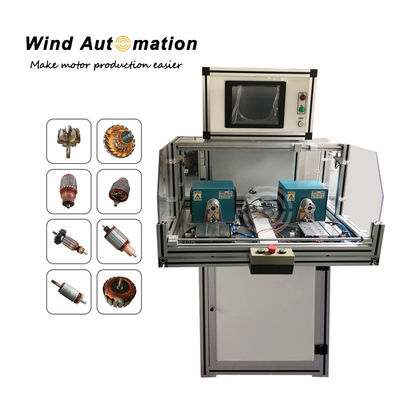

Large Image : Middle Size Window Lifter Motor Starter Tester Armature Testing Machine for 100 Sets/Year

Product Details:

Contact Now

Middle Size Window Lifter Motor Starter Tester Armature Testing Machine for 100 Sets/Year

Description

Model NO.:	WIND-ST-1	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

Window Lifter Motor Starter Tester Armature Testing Machine

This testing machine is used to test motor armature performance. Once armature is loaded on the fixture, machine will start testing automatically. All the testing items can be programmed.

(1)Testing specifications

Test Items	Test Description	Accuracy
Bar to Bar resistance	0.001Ω~1000Ω (Automatic ambient temperature compensation)	≤±0.5% Full scale
Welding resistance	0.001mΩ-10mΩ	±10μΩ
Cross resistance	0.01Ω-1000Ω (Automatic ambient temperature compensation)	≤±0.5% Full scale
Surge	100-3000Vpp (Max 3sets waveform)	±2.5%
Isolation resistance	DC 500V/1000V	0.1-500MΩ ≤±2.5% Full scale
Hipot	AC 100-3000V(2 sets)	0-20mA ≤±2.5% Full scale

(2) Application
Suitable for various starter motor armatures to do performance testing.

(3) Features
Double station
Up to 3 sets of hipot testing
Testing done by machine automatically
Quick and accurate test
Friendly HMI interface
Modular design of tooling
Work as stand-alone machine or integrated into a production line
All parameters can be catch automatically by one-key-operation.

(4)Machine configuration
15'' Touch screen
Sampling Chip: BB/TI (USA import)
Relay:NAIS(Japan Panasonic)
High voltage relay:Toward
Pneumatic parts: Airtac
Window Lifter Motor Starter Tester Armature Testing Machine
