Middle Size WIND-PCW-F2 Starter Magnetic Field Coil Winding Machine for Easy Operation

Description

Model NO.:	WIND-PCW-F2	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

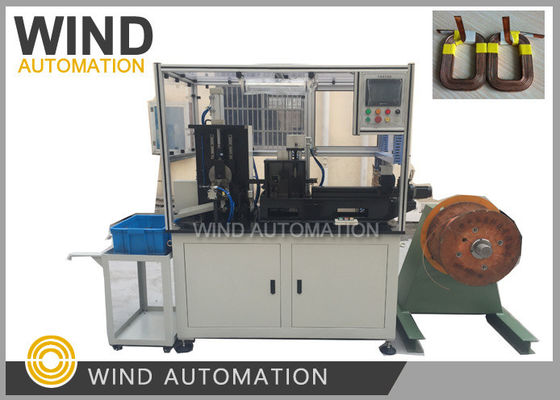

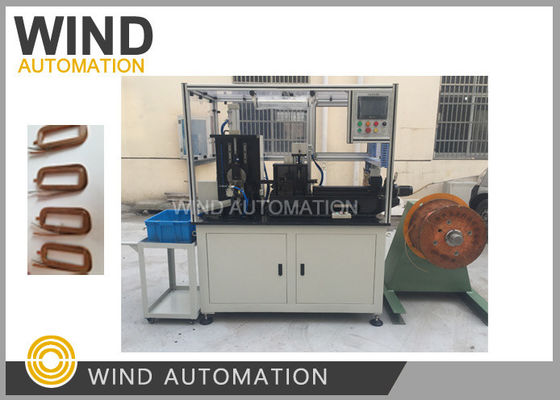

Starter Magnetic Field Coil Winding Machine

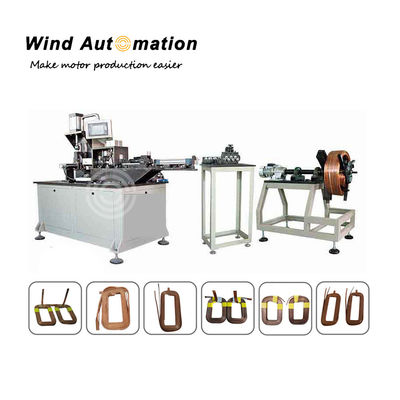

This coil winding machine is a fully automated machine for winding magnetic field coils. This machine integrates several machine stations in one automatic machine as follows: dereeler, straightening station, feeder, bending and twisting station, winding station, cut-off station.

(1)Specifications

Wire OD	Less than 20mm
Winding speed	0~80r/min
Rotation diameter	160mm
Power Supply	AC 220V ±10% 50Hz
Air Pressure Supply	0.5~0.7Mpa
Machine Power	3 kW
Dimension	1500x800x1800mm

(2) Application

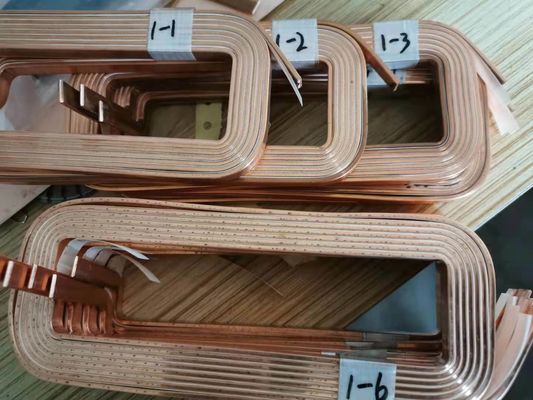

Suitable for various kinds of starter motor with rectangular wire coil.

(3) Features
Auto winding, straightening, bending and twisting
Precise pneumatic drive control of the coil winding
Short re-adjusting time
PLC controlled working operations
Completely automated winding process of the magnetic field coil

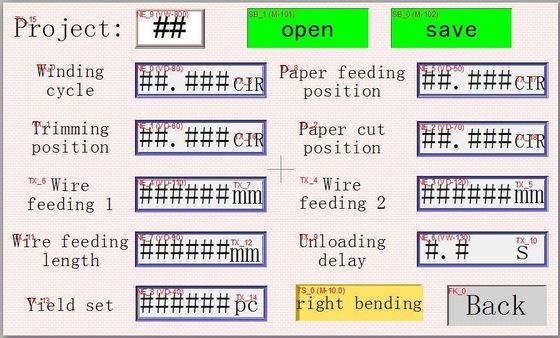

LCD display of all technical parameters and current status of the winding process
This machine can be customized accordingly
Self-diagnostic troubleshooting system
No skilled operator required
