Hybrid Car Motor Stator Paper Expanding Machine

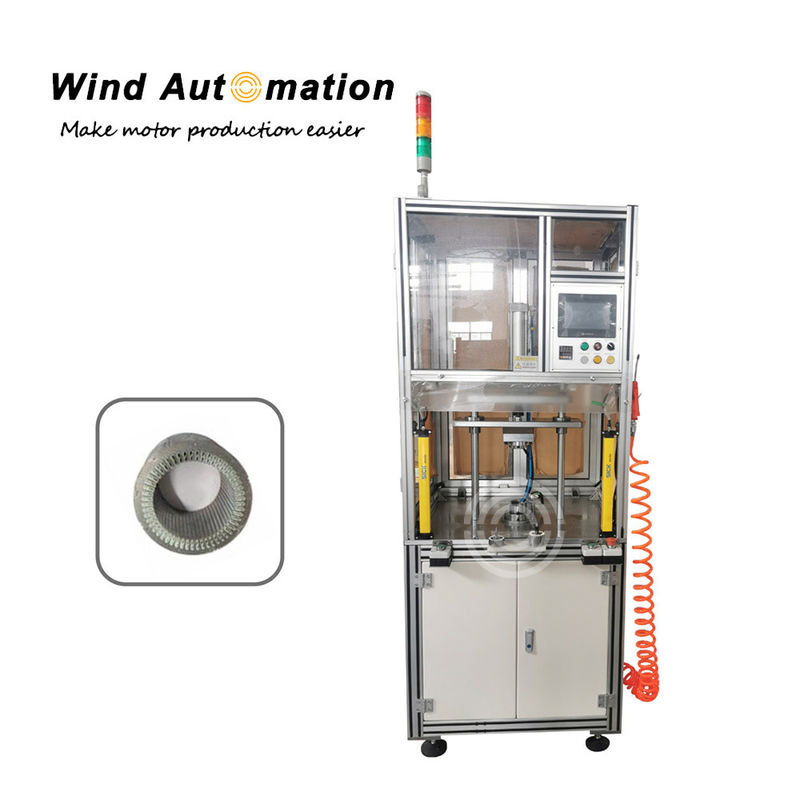

Large Image : Hybrid Car Motor Stator Paper Expanding Machine

Product Details:

Contact Now

Hybrid Car Motor Stator Paper Expanding Machine

Description

Model NO.:	WIND-KZJ	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

Hybrid Car Motor Stator Paper Expanding Machine

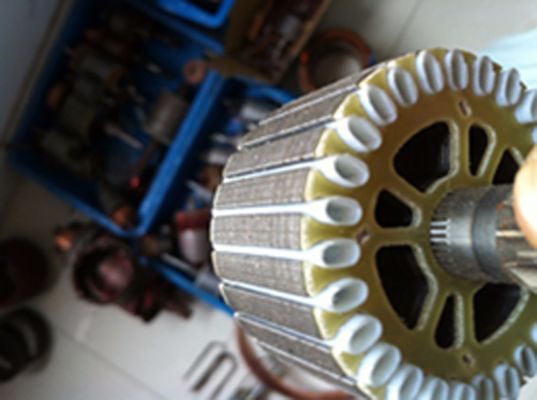

This hybrid car motor stator paper expanding machine is capable of expanding stator slot paper after the paper inserting stage in order to leave enough space for successive coil insertion. After expanding, no deformation of stator or slot paper. The machine performs automatic expanding process after work piece loading.

(1) Specifications

Power supply	AC 380V 50Hz
Air pressure supply	≥0.5MPa
Pressure measurement	adjustable
Weight	600KG
Dimension	900x700x1950mm

(2)Application

This machine is designed for insulation paper expanding for hybrid car motor, hybrid automobile car motor or hybrid vehicle motor stators.

(3) Features
Two ways of loading, manual or by mechanical arm
No deformation of stator or slot paper after expanding
Easy to operate
Fully automatic working cycle after loading
Fast and easy readjustment
PLC control, fault display
High quality level of the expanding process
Design compliant with the requirements of the OEM manufacturers

(4)Working process
Loading---working piece feeding---downward pressure---- heating--- upward pressure--- finished piece feeding----unloading

(5)Machine configuration
Mitsubishi PLC and servo motor
Weinview touch screen
AIRTAC or SMC pneumatic components
HIWIN linear guide
Schneider electrical components

Hybrid Car Motor Stator Paper Expanding Machine
