Middle Size Stator Rectangle Wire Forming Machine for Hybrid Automobile Car Motor 100 Sets/Year

Large Image : Middle Size Stator Rectangle Wire Forming Machine for Hybrid Automobile Car Motor 100 Sets/Year

Product Details:

Contact Now

Middle Size Stator Rectangle Wire Forming Machine for Hybrid Automobile Car Motor 100 Sets/Year

Description

Specification:	Middle Size	Trademark:	Wind Automation
Origin:	China	HS Code:	8479811000
Production Capacity:	100 Sets/Year

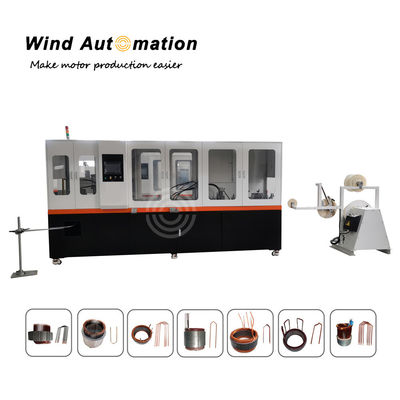

Stator Rectangle Wire Forming Machine for Hybrid Automobile Car Motor

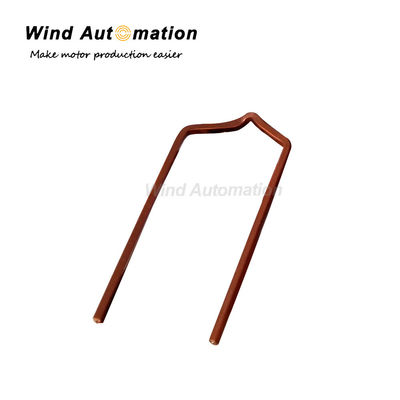

This Wire Forming Machine is used to produce hairpin coils. It can automatically turn single rectangle bare copper wire into haripin shape coil. During hairpin winding, one operator is quite enough to operate this machine.

(1)Specifications

Power supply	AC 380V 50Hz
Air pressure supply	≥0.5MPa
Productivity	4-5s/pc (wire length 300mm)
Wire feeding length	Servo adjustable
Weight	1200KG
Dimension	3200x700x1950mm

(2) Application

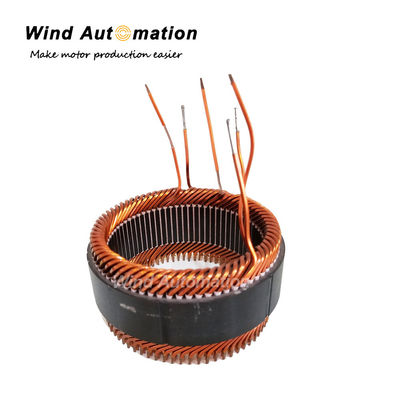

This machine is designed for manufacturing hairpins for hybrid car motor, hybrid automobile car motor or hybrid vehicle motor stators.

(3) Features
Capable of producing conductor with customized size
Mitsubishi PLC control, colorful touching screen
Automatic hairpin forming process
High efficiency, automation and productivity
High repeatability of the conductor's shape and dimensions
Automatic operation as a single unit or as a part of an automatic line
Integrated several machine stations in one automatic machine
Precisely machined high quality steel tools
Auto dust collection system

(4)Machine configuration
Mitsubishi PLC and servo motor
Weinview touch screen
AIRTAC or SMC pneumatic components
HIWIN linear guide
Schneider electrical components
Industrial vacuum cleaner
Dereeler
Stator Rectangle Wire Forming Machine for Hybrid Automobile Car Motor
