1200.000kg Hybrid Car Motor Hairpin Forming Production Hairpin Coil Wire Winding Machine

Large Image : 1200.000kg Hybrid Car Motor Hairpin Forming Production Hairpin Coil Wire Winding Machine

Product Details:

Contact Now

1200.000kg Hybrid Car Motor Hairpin Forming Production Hairpin Coil Wire Winding Machine

Description

Customized Service:	Provided	Transport Package:	Wooden Case
Specification:	Middle Size	Trademark:	Wind Automation
Origin:	China	HS Code:	8479811000
Production Capacity:	100 Sets/Year	Package Size:	150.00cm * 120.00cm * 100.00cm
Package Gross Weight:	1200.000kg

Hybrid Car Motor Hairpin Forming Machine Hairpin Coil Wire Winding Machine

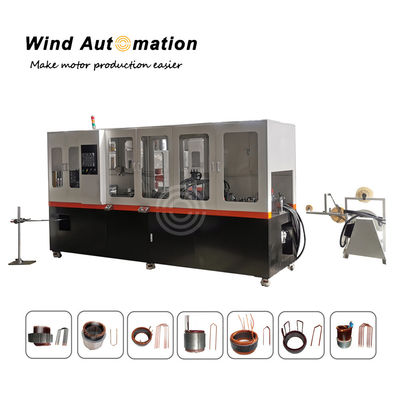

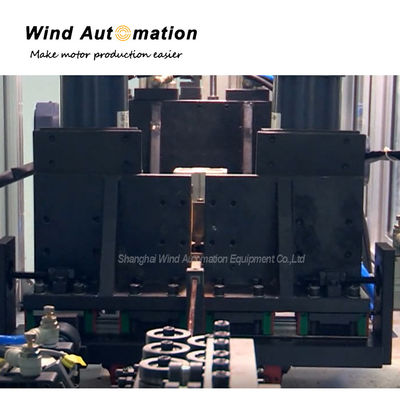

This Hairpin Coil Forming Machine can automatically turn single rectangle bare copper wire into haripin shape coil. During forming, one operator is quite enough to operate this machine.

(1)Specifications

Power supply	AC 380V 50Hz
Air pressure supply	≥0.5MPa
Productivity	4-5s/pc (wire length 300mm)
Wire feeding length	Servo adjustable
Weight	1200KG
Dimension	3200x700x1950mm

(2) Application

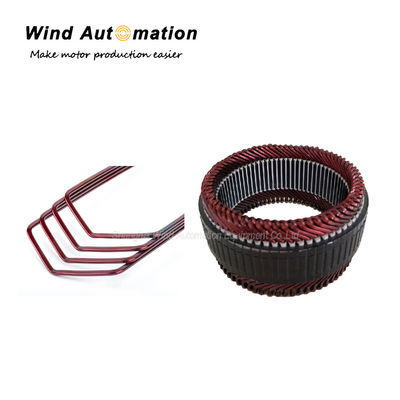

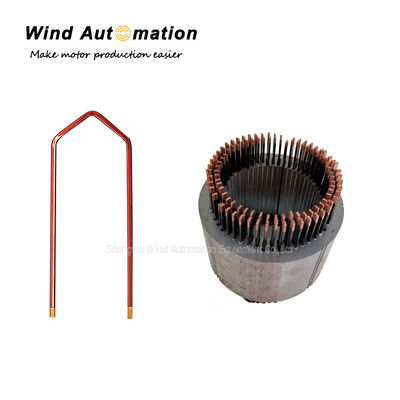

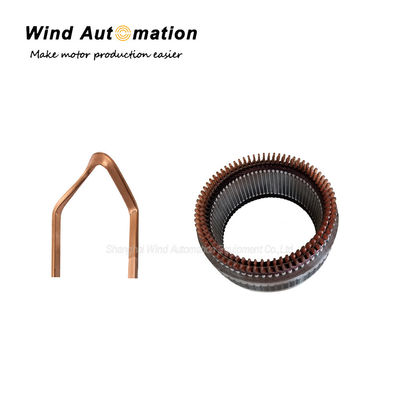

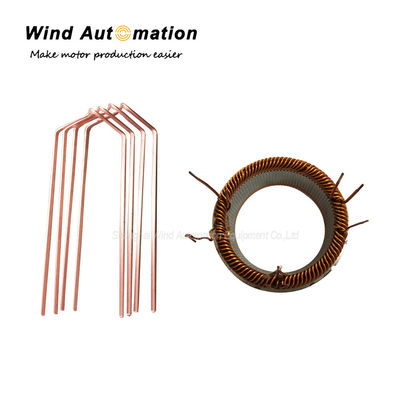

This machine is designed for manufacturing hairpins for hybrid car motor, hybrid automobile car motor or hybrid vehicle motor stators.

(3) Features
Capable of producing conductor with customized size
Mitsubishi PLC control, colorful touching screen
Automatic hairpin forming process
High efficiency, automation and productivity
High repeatability of the conductor's shape and dimensions
Automatic operation as a single unit or as a part of an automatic line
Integrated several machine stations in one automatic machine
Precisely machined high quality steel tools
Auto dust collection system

(4)Machine configuration
Mitsubishi PLC and servo motor
Weinview touch screen
AIRTAC or SMC pneumatic components
HIWIN linear guide
Schneider electrical components
Industrial vacuum cleaner
Dereeler
