Product Details:
|
| Model NO.: | WIND-Y32-3T | Trademark: | Wind Automation |
|---|---|---|---|
| Origin: | China | HS Code: | 8479811000 |
| Production Capacity: | 100 Sets/Year |

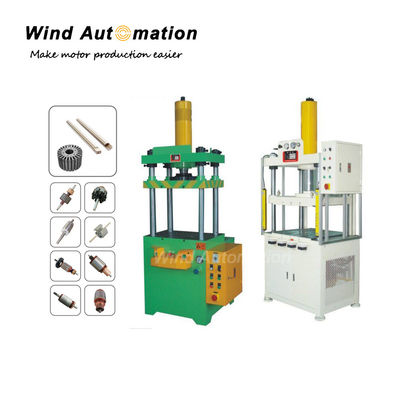

This hydraulic shaft pressing machine is used to press shaft to lamination stack. It has the capability to define lower and upper press on force limits to detect low or upper force. It is the ideal equipment for mass production of starter rotors by replacing tooling for different products.
(1) Specifications
| Nominal force (hydraulic cylinder) | KN | 25 (2.5Ton) |
| Pressure sensor | KN | 30 |
| System pressure | Mpa | 5.5 |
| Maximum stroke of oil cylinder | mm | 200 |
| Maximum stroke of electronic ruler | mm | 250 |
| Rapid depressing speed | mm/s | 50 |
| Slow depressing speed | mm/s | 0~50 |
| Return speed | mm/s | 80 |
| Oil pump | / | Vane pump |
| Motor | kw | 1.5 |
| Voltage | V | 380 |
| Outline dimensions ( L × W × H ) | mm | 950X650X1800 |
(2) Application
This shaft pressing machine is suitable for starter rotors, automotive car motor.
(3) Features
Controlled by PLC
Driven by hydraulic pressure
With grating protection system
Easy to operate and set on screen
100% satisfaction good feedback
High quality level of the shaft pressing process
Can be customized accordingly
Manual loading and unloading
(4) Operation process
Manually load workpiece and shaft
Two hands press start button
Machine begins to work, cylinder moves downward
Unload finished workpiece
