Commutator Spot Welding Machine for Universal Motor Armature

Large Image : Commutator Spot Welding Machine for Universal Motor Armature

Product Details:

Contact Now

Commutator Spot Welding Machine for Universal Motor Armature

Description

Model NO.:	WIND-DC-CW001	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

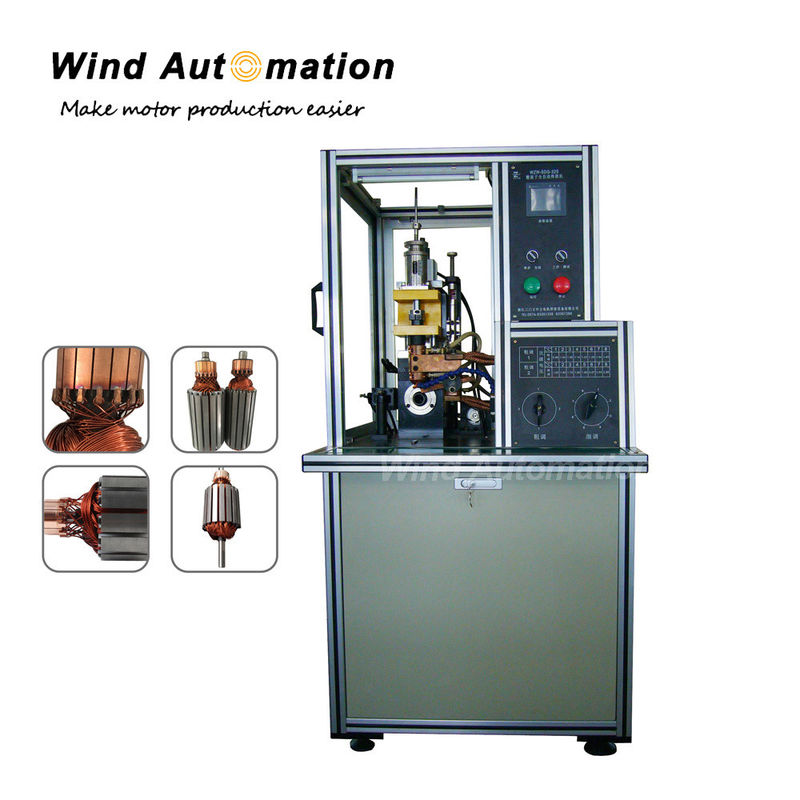

Commutator Spot Welding Machine for Universal Motor Armature

This type of Commutator welding machine is used to weld commutator hook. Machine will automatically do indexing, welding, and cooling. All parameters can be programmed on the touch screen. The entire working cycle is fully automatic excluding manual loading and unloading.

(1)Specification

Commutator OD	5mm~60mm
Armature OD	15mm~100mm
Shaft OD	1.8mm~23mm
Wire diameter	0.07mm~1.80mm
Max power	25KVA
Air source pressure	0.3~0.5Mpa
Power supply	220V+/-10% / 50Hz
Working efficiency	10sec/pc

(2)Features
High quality level of the welding process
Integrable in a production line
Easy to operate, no skilled operator needed
Fast and easy tooling change
Wide application
