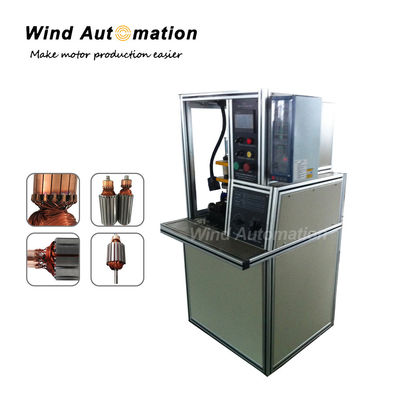

AC Type Commutator Spot Welding Machine Hot-Stacking Machine

Large Image : AC Type Commutator Spot Welding Machine Hot-Stacking Machine

Product Details:

Contact Now

AC Type Commutator Spot Welding Machine Hot-Stacking Machine

Description

Model NO.:	WIND-AC-CW001	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

Miyachi Welding Power Commutator Hot Stacking Machine

The vertical mechanical motion of the machine is driven by the cylinder; and the auxiliary electrode is driven by the linear bearing. It can work easy and has good contact with commutator and without damage to the commutator.

(1)Application
The machine is used for the starter of cars and motorcycle, DC motors, power tool motors, household appliances motors and series motors.

(2)Specification

Voltage	230V
Rated frequency	50-60Hz
Rated power	25KVA
Wire diameter	0.06-1.6 mm
Armature OD	0-100mm
Commutator OD	0-60mm
Stack length	0-350mm
Air source	0.3~0.5Mp
Cooling method	Water cooling and air cooling

(3)Operation
1)Connect machine to air source and power supply.
2)Switch the button to Miyachi.
3)Turn on machine power switch.
4)Switch the two buttons under the touch screen to "Auto" and "Run" .
5)Switch the rough set to 2 and the accurate set to 8.
6) Power on Miyachi.
7) Press "Stop" button. Then press the "Start" button to begin fusing.
