Middle Size Hook Type Riser Type Commutator Spot Welding Machine WIND-AC-CW001

Large Image : Middle Size Hook Type Riser Type Commutator Spot Welding Machine WIND-AC-CW001

Product Details:

Contact Now

Middle Size Hook Type Riser Type Commutator Spot Welding Machine WIND-AC-CW001

Description

Model NO.:	WIND-AC-CW001	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

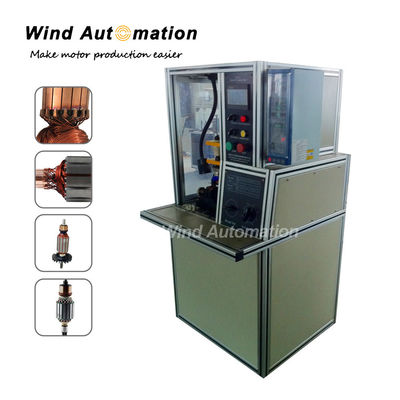

Hook Type Riser Type Commutator Spot Welding Machine

This welding machine uses water cooling internal circulation and has a built-in water tank. It does not need a water source. The welding power is Miyachi welding. This machine is easy to operate, loading and unloading should be done manually.

(1)Operation
1)Switch the button to Miyachi. And choose Auto mode.
2) Power on Miyachi.
3) Load Armatue
4) Press the "Start" button to begin fusing
5) Unload Armatue

(2)Application
The machine is used for the starter of cars and motorcycle, DC motors, power tool motors, household appliances motors and series motors.

(3)Specification

Voltage	230V
Rated frequency	50-60Hz
Rated power	25KVA
Wire diameter	0.06-1.6 mm
Armature OD	0-100mm
Commutator OD	0-60mm
Stack length	0-350mm
Air source	0.3~0.5Mp
Cooling method	Water cooling and air cooling
