Custom-Made WIND-AC-CW001 Commutator Hot-Stacking Machine for Vacuum Cleaner Armature

Large Image : Custom-Made WIND-AC-CW001 Commutator Hot-Stacking Machine for Vacuum Cleaner Armature

Product Details:

Contact Now

Custom-Made WIND-AC-CW001 Commutator Hot-Stacking Machine for Vacuum Cleaner Armature

Description

Model NO.:	WIND-AC-CW001	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

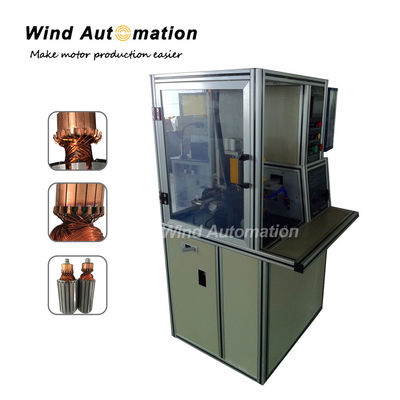

Commutator Hot-stacking Machine for Vacuum Cleaner Armature

The transposition of this hot-stacking machine adapts step-by-step impulse; driven by drivers and division by servo motor. The current adjustment includes rough adjustment and precision adjustment, total 16 grades. The main transformer is 230V.

(1)Specification

Voltage	230V
Rated frequency	50-60Hz
Rated power	25KVA
Wire diameter	0.06-1.6 mm
Armature OD	0-100mm
Commutator OD	0-60mm
Stack length	0-350mm
Air source	0.3~0.5Mp
Cooling method	Water cooling and air cooling

(2)Operation
1)Switch the button to Miyachi. And choose Auto mode.
2) Power on Miyachi.
3) Load Armatue
4) Press the "Start" button to begin fusing
5) Unload Armatue

(3)Application
The machine is used for the starter of cars and motorcycle, DC motors, power tool motors, household appliances motors and series motors.
Commutator Hot-Stacking Machine for Vacuum Cleaner Armature
