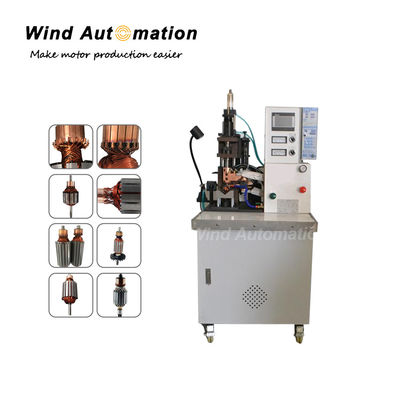

WIND-DC-CW003 High Frequency Middle Size Armature Fusing Machine Commutator Welder

Large Image : WIND-DC-CW003 High Frequency Middle Size Armature Fusing Machine Commutator Welder

Product Details:

Contact Now

WIND-DC-CW003 High Frequency Middle Size Armature Fusing Machine Commutator Welder

Description

Model NO.:	WIND-DC-CW003	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

High Frequency Type Armature Fusing machine Commutator Welder

This fusing machine adopts inverter DC technology to do welding. Current is highly concentrated in the welding area, so as the welding period is extremely short. The strong cooling effect of this machine greatly reduces the changes of commutator thermal deformation and oxidation, thus improves the welding quality and efficiency.

(1) Specification

Armature OD	20~100mm
Commutator OD	8~70mm
Stack length	10~100mm
Wire diameter	0.05~1.2mm
Bar No.	Random
Air supply	5~7Kg/m2
Power supply	380V 50/60Hz
Weight	350Kg
Dimension	1600x1000x2300mm

(2) Application
It is suitable for both hook and riser type commutator. It is suitable for home appliance, car and power tool motor armature.

(3)Features
High quality level of the welding process
Wide application and model types
Quick change-over of tooling
Provide customized service
Automatic welding, indexing, cooling

(4)Machine configuration
Touch screen
Self-developed welding power, 500~5000A
Mitsubishi PLC and servo positioning system
AIRTAC pneumatic components
Constant temperature water tank

High Frequency Type Armature Fusing Machine Commutator Welder
