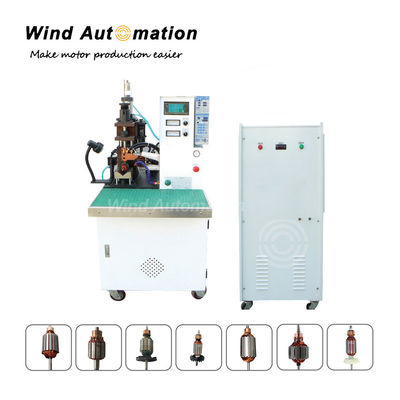

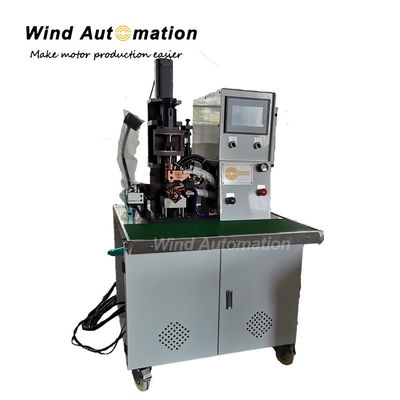

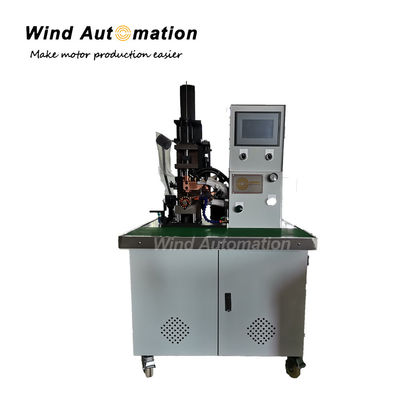

WIND-TMI-1 AC Power Supplytype Commutator Welder Armature Fusing Machine

Large Image : WIND-TMI-1 AC Power Supplytype Commutator Welder Armature Fusing Machine

Product Details:

Contact Now

WIND-TMI-1 AC Power Supplytype Commutator Welder Armature Fusing Machine

Description

Model NO.:	WIND-TMI-1	Condition:	New
Customized Service:	Provided	Transport Package:	Wooden Case
Specification:	Middle Size	Trademark:	Wind Automation
Origin:	China	HS Code:	8479811000
Production Capacity:	100 Sets/Year	Package Size:	100.00cm * 100.00cm * 150.00cm
Package Gross Weight:	350.000kg

AC Type Commutator Welder Armature Fusing Machine

This type of fusing machine is suitable for commutator with OD within 8mm to 70mm, regardless of its wire diameter. After welding, no damage to the insulation layer.

(1) Specification

Armature OD	20~100mm
Commutator OD	8~70mm
Stack length	10~100mm
Wire diameter	0.05~1.2mm
Bar No.	Random
Power supply	220V 50/60Hz
Weight	350Kg
Dimension	1600x1000x2300mm

(2) Application
It is suitable for both hook and riser type commutator. It is suitable for home appliance, car and power tool motor armature.

(3)Features
High quality level of the welding process
Wide application and model types
Quick change-over of tooling
Provide customized service
Automatic welding, indexing, cooling

(4)Machine configuration
Mitsubishi PLC and servo positioning system
AIRTAC pneumatic components
EV4200C HIM
Welding power: Japan Central 30 channel constant current, constant voltage controller

Welding Collect for different Armature SHAFT SIZE
AC Power Supplytype Commutator Welder Armature Fusing Machine
