Automatic Paper Insertion Machine for Air Conditioner Armature

Large Image : Automatic Paper Insertion Machine for Air Conditioner Armature

Product Details:

Contact Now

Automatic Paper Insertion Machine for Air Conditioner Armature

Description

Model NO.:	WIND-IP-1	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

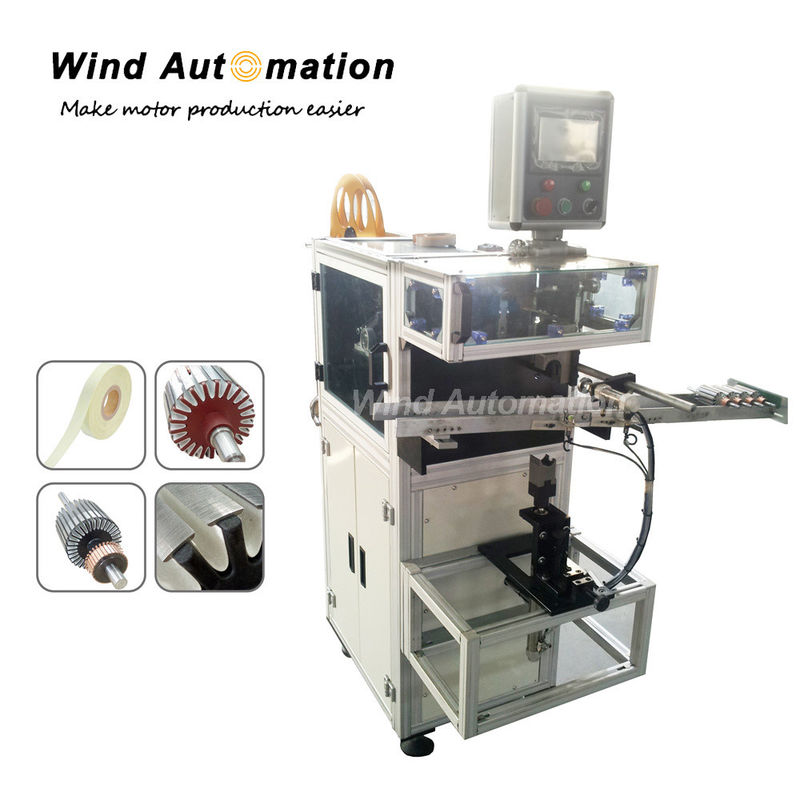

Automatic Paper Insertion Machine For Air Conditioner Armature

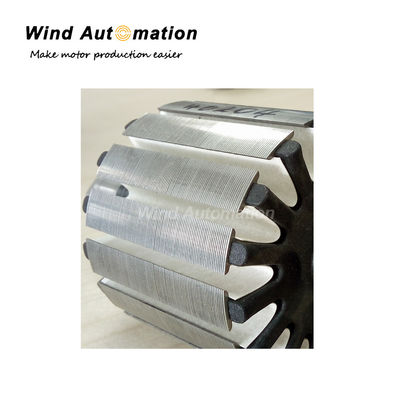

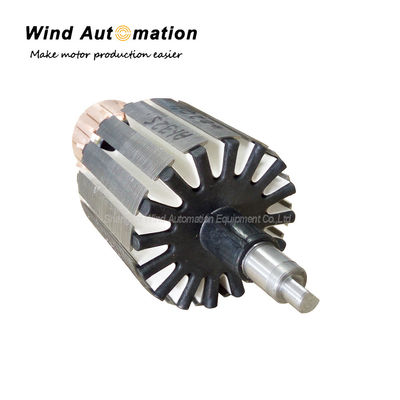

This paper insertion machine has a wide application, is designed for armature slot paper inserting. It can automatically form, cut, insert insulation paper into armature body.

(1)Specification

Outside Dimension	2000(L)X1550(W)X1727(H)mm
Machine Weight	~250Kg
Motor Power	0.75Kw
Voltage	220V AC
Pressure	0.4-0.6Mp

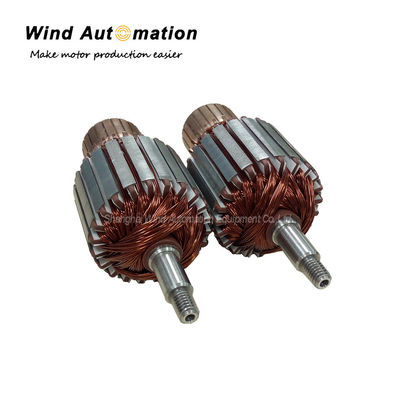

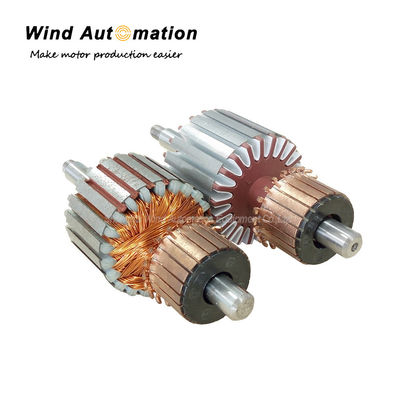

Manufacturing product	Motor armature insulation paper
Armature O.D range	20-65mm
Length of insulation paper	20-70mm Adjustable
(MAX) Width of insulation paper	25mm
Armature slot number	8-24 slots
Work procedure	Feeding-fix-insert paper-discharge (12 slots, 11 seconds totally)
Fixture	Pneumatic mechanical fixture
Feeding form	Automatic
Lubricant form	Grease lubrication

(2)Feature
PLC control
Adjustable for different rotor lengths
Quick and easy readjustment to other armature types
Precise Insulation paper length control
Suitable for three shifts continuous production
Friendly designed operator's interface
Precise paper formation and placement

(3) Application
This is suitable for home appliance, mixer, meat grinder, air conditioner, refrigerator, vacuum cleaner, washing machine, juicer, mixer, various pump, power tool.
