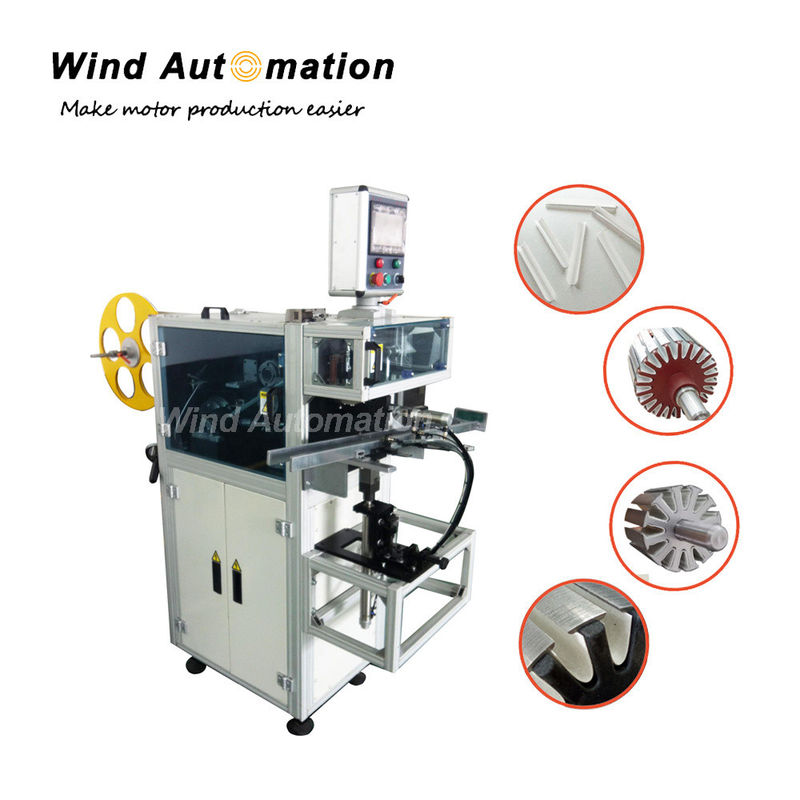

Product Details:
|
| Model NO.: | WIND-IP-1 | Specification: | Middle Size |
|---|---|---|---|
| Trademark: | Wind Automation | Origin: | China |
| HS Code: | 8479811000 | Production Capacity: | 100 Sets/Year |

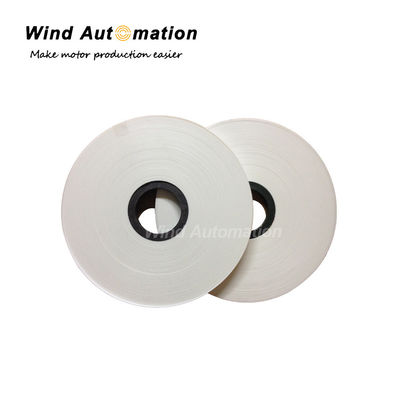

| Length of insulation paper | 15-60mm adjustable |
| Thickness of insulation paper | 0.1 mm ~ 0.5 mm |
| Insulation paper shape | V or edge-folding V |
| Armature OD | 20-55mm |
| Length of lamination | Max 60mm |
| Shaft length | 32~250mm |
| Shaft OD | 6~20mm |
| Slot number | 8-24 slots |
| Commutator OD | 16~50mm |
| Speed regulation range | 0~60Hz |
| Air pressure | 4~6kg/cm2 |
| Voltage | AC220V±10%, 50/60Hz |
| Machine power | 1.0KW |
| Weight | about 400Kg |
| Dimension | 910 mm x 880 mm x 1300mm |
