Armature Flyer Winding Machine Lap Winder Hook Type Winding Machine

Large Image : Armature Flyer Winding Machine Lap Winder Hook Type Winding Machine

Product Details:

Contact Now

Armature Flyer Winding Machine Lap Winder Hook Type Winding Machine

Description

Model NO.:	WIND-STR	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

Armature Flyer Winding Machine Lap Winder
Hook Type Winding Machine

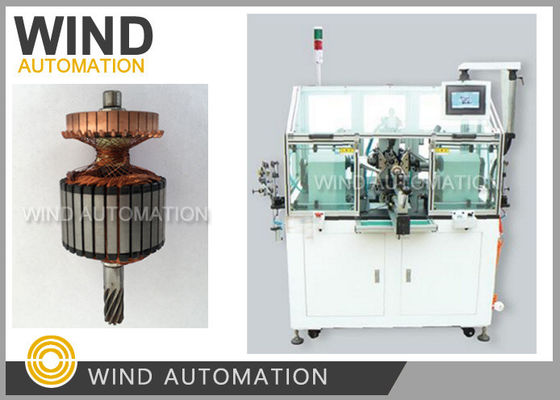

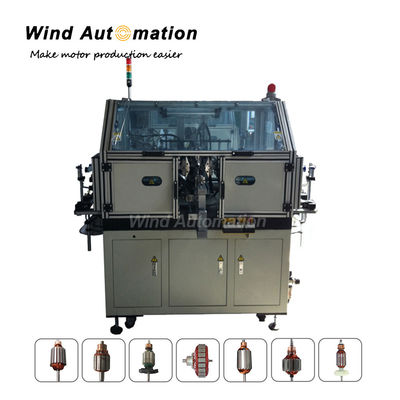

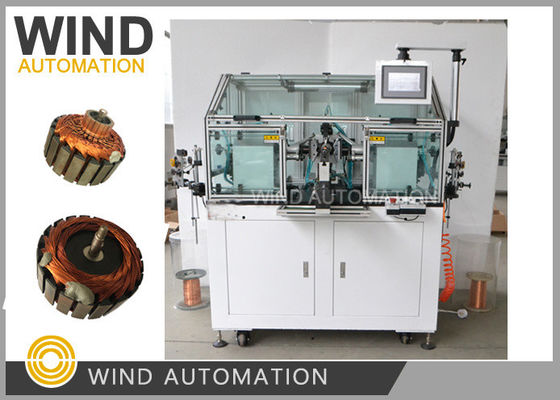

This armature winding machine adopts double flyers structure, 2pcs Mitsubishi servo motor drive the two flyers rotation, and 1pc Mitubishi indexing servo motor make sure the precise indexing.

(1) Specification
Wire diameter range: 0.16~1.2 mm
Armature diameter: 20~85 mm
Stack length: 10~70 mm
Shaft diameter: 3~15 mm
Shaft length: less than 250mm
Armature Slot: even slot
Turn number: 0~9999
Commutator diameter: 8~40 mm
Winding speed: 0~2500 rpm
Winding motor power: 1.5KWX2
Angle detecting speed: 0~3000 rpm
Angle detecting motor power: 0.75KWX1
Air supply pressure: 4~6 Kg/cm2
The machine total power: 4.0 KW
Voltage: three phase AC 380V 50/60 Hz
Weight: 1250 Kg
Dimension: 2000(length)X1000(width)X1800(height)mm
HS code: 8479811000

(2) Application

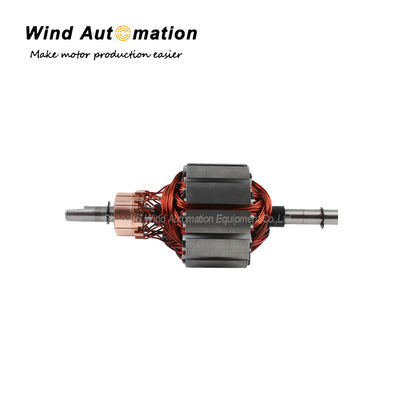

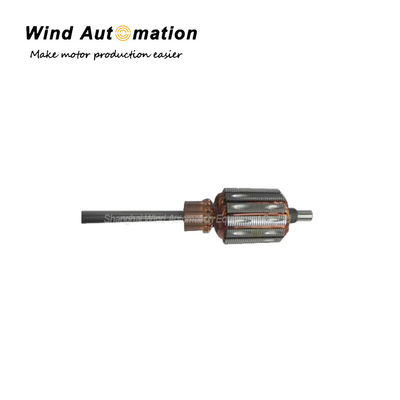

Wind the wire of armature for micro motor such as series motor, house hold appliances motor power tools,mixer,blender,car motor etc.
