Product Details:
|
| Model NO.: | WIND-ODD-4 | Customized Service: | Provided |
|---|---|---|---|
| Transport Package: | Wooden Case | Specification: | Middle Size |
| Trademark: | Wind Automation | Origin: | China |
| HS Code: | 8479811000 | Production Capacity: | 100 Sets/Year |

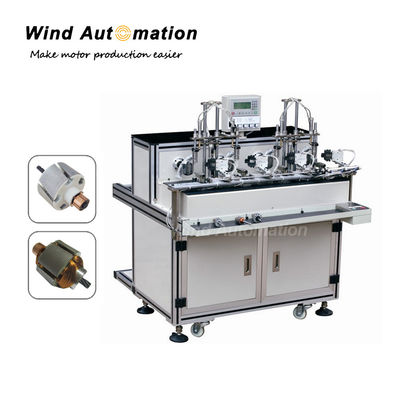

Machine is of high efficiency with 4 working stations, which means 4 armature can be winded at same time. Wire diameter range is 0.08~0.55mm (AWG23 ~ AWG40). Automatic clamping, automatic winding, automatic indexing,automatic hooking.
| Wire diameter | 0.08~0.55mm |

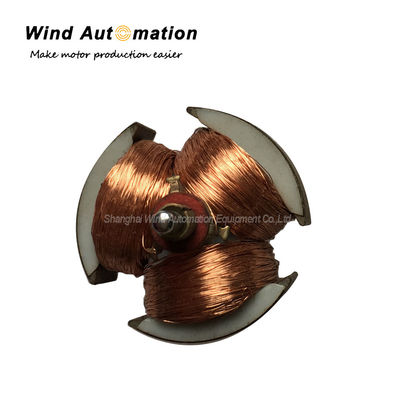

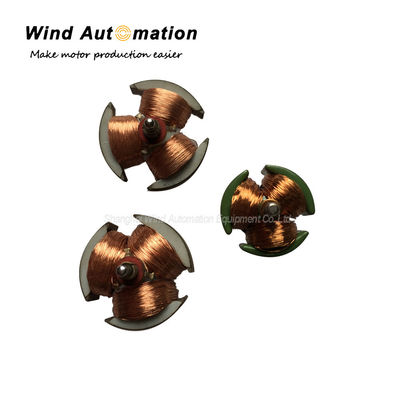

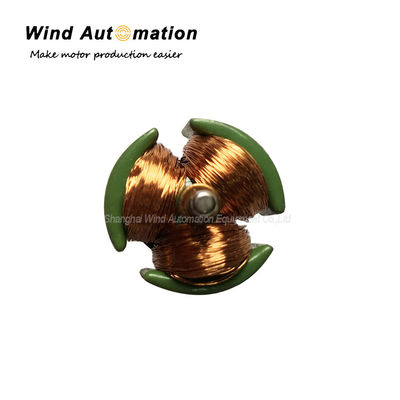

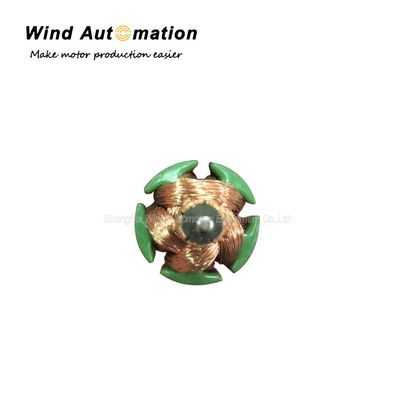

| Armature type | 3~5 slots armature |
| Armature diameter | 8~25mm |
| Max armature stack length | 30mm |
| Winding motor speed | 0~3000 rpm |
| Maxshaft length | 70mm |
| Rated power | ≤1.2kW |
| Air supply pressure | 0.4M~0.8MPa |
| Voltage | AC220V 50/60Hz |
| Machine dimension | 1100*1100*1300mm |
| Machine weight | 320Kg |
