Product Details:
|
| Model NO.: | WIND-IW-1 | Transport Package: | Wooden Case |
|---|---|---|---|
| Specification: | Middle Size | Trademark: | Wind Automation |
| Origin: | China | HS Code: | 8479811000 |
| Production Capacity: | 100 Sets/Year |
| Outside Dimension | 910(L)X900(W)X1450(H)mm |
| Machine Weight | ~250Kg |
| Motor Power | 0.75Kw |
| Voltage | 220V AC |
| Pressure | 0.4-0.6Mp |

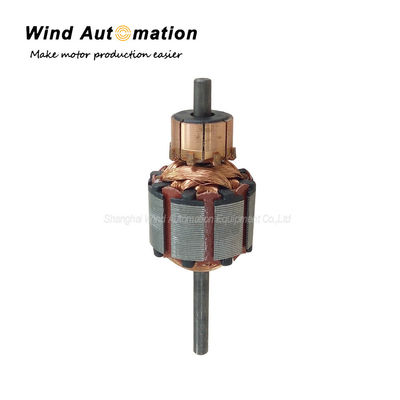

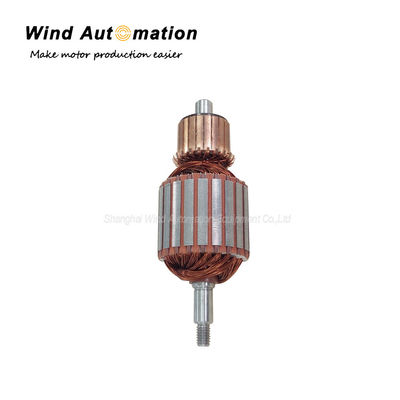

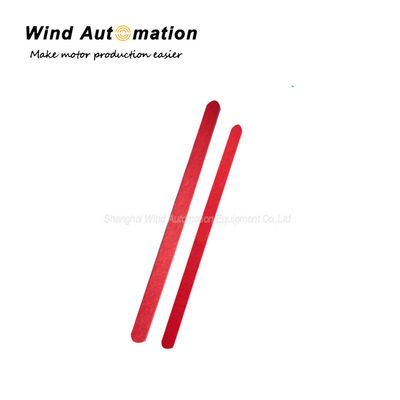

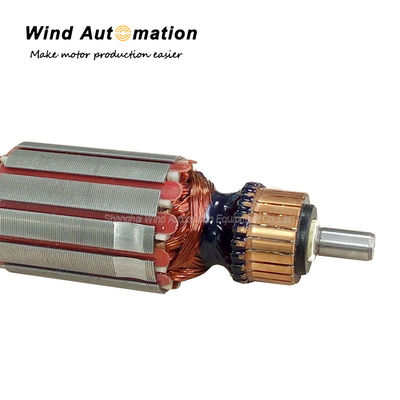

| Manufacturing product | Motor armature wedge |
| Armature O.D range | φ20-φ55 |
| Length of wedge | 15-60mm Adjustable |
| (MAX) Width of wedge | 8mm |
| Armature slot number | 8-24 slots |
| Work procedure | Feed-install fixture-plug in-discharge |
| Fixture | Pneumatic mechanical fixture |
| Feeding form | Automatic |
| Lubricant form | Grease lubrication |
