Middle Size WIND-IW-2 Automatic Wedge Insertion Machine for Treadmill Motor Air Conditioner Armature

Large Image : Middle Size WIND-IW-2 Automatic Wedge Insertion Machine for Treadmill Motor Air Conditioner Armature

Product Details:

Contact Now

Middle Size WIND-IW-2 Automatic Wedge Insertion Machine for Treadmill Motor Air Conditioner Armature

Description

Model NO.:	WIND-IW-2	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

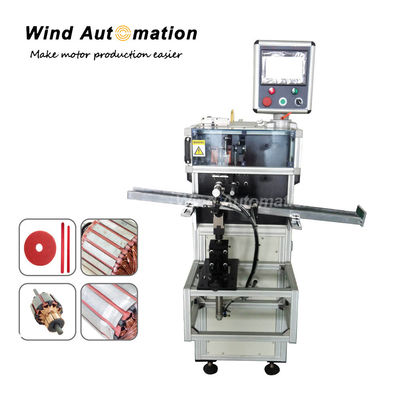

Automatic Wedge Insertion Machine For Air Conditioner Armature

This wedge insertion machine has a wide application. During machine running or before machine completely stops, do not open the door or the safety guard, or put your hand or other body part into the machine.

(1) Application
This is suitable for home appliance, mixer, meat grinder, air conditioner, refrigerator, vacuum cleaner, washing machine, juicer, mixer, various pump, power tool.

(2)Specification

Outside Dimension	910(L)X900(W)X1450(H)mm
Machine Weight	~250Kg
Motor Power	0.75Kw
Voltage	220V AC
Pressure	0.4-0.6Mp

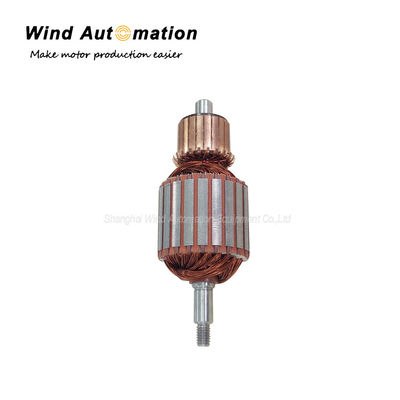

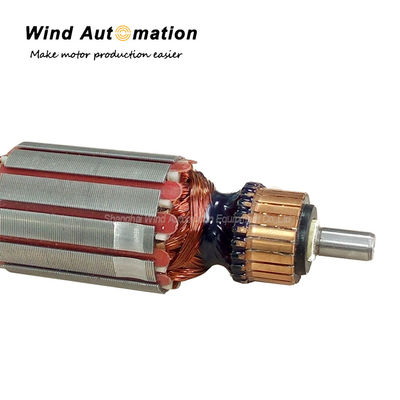

Manufacturing product	Motor armature wedge
Armature O.D range	φ20-φ55

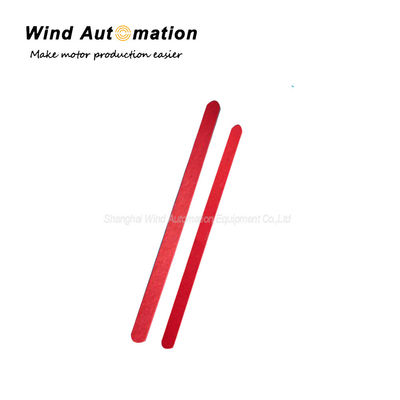

Length of wedge	15-60mm Adjustable
(MAX) Width of wedge	8mm
Armature slot number	8-24 slots
Work procedure	Feed-install fixture-plug in-discharge
Fixture	Pneumatic mechanical fixture
Feeding form	Automatic
Lubricant form	Grease lubrication

(3)Feature
PLC control
Adjustable for different armature lengths
Quick and easy readjustment to other armature types
Precise wedge length control
Suitable for three shifts continuous production
Friendly designed operator's interface
Precise wedge formation and placement

Automatic Wedge Insertion Machine for Treadmill Motor Air Conditioner Armature
