WIND-DAB-5Z Middle Size Armature Balancing Machine with Weight Adding

Large Image : WIND-DAB-5Z Middle Size Armature Balancing Machine with Weight Adding

Product Details:

Contact Now

WIND-DAB-5Z Middle Size Armature Balancing Machine with Weight Adding

Description

Model NO.:	WIND-DAB-5Z	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

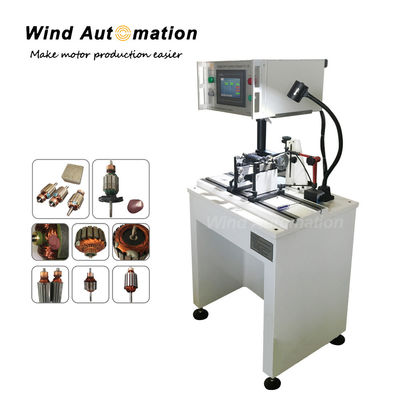

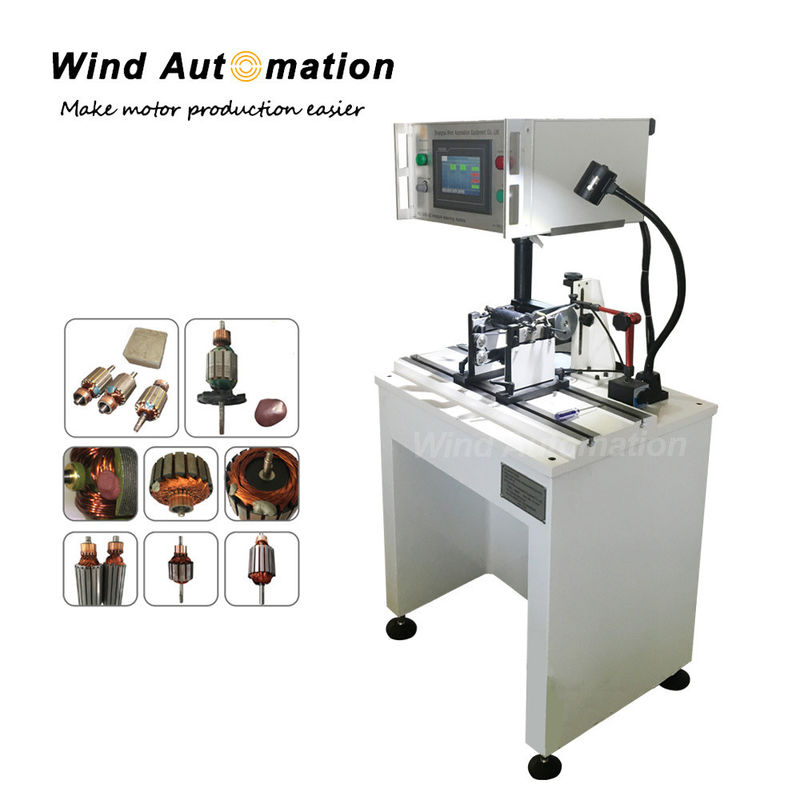

Armature balancing machine with weight adding

This balancing machine uses weight adding method to do balacing. The electric cabinet of this machine is with advanced electrometrical circuit, excellent layout, and its linear and digital integrated circuit is universal series in DIP (dual in-line package).

(1)Feature
Auto positioning
Weight adding balancing method
Unbalancing weight measurement before balancing
No skilled operator need

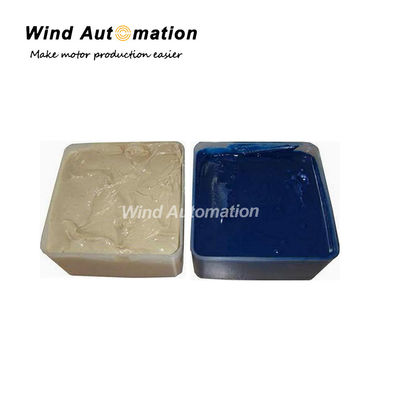

Adding Balancing mud manually
Fast and easy readjustment
Provide customized service
Wide application and strong applicability

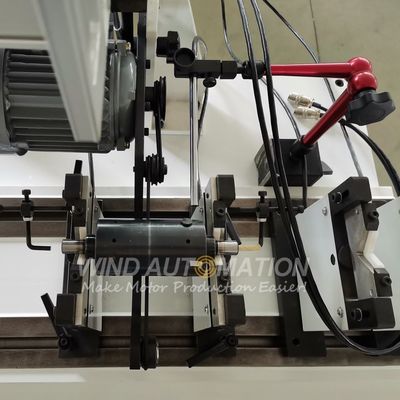

V-shape support block

(2)Specification

Armature stack length	10~200mm
Armature OD	Max 260mm
Shaft OD	3-40mm
Armature weight	0.1~5Kg
Unbalancing value	0~600g.mm/kg
Min residual unbalance value	≤0.1g·mm/kg
Driving method	Belt
Balancing speed	500-5000r/min
Power supply	220V
Power	200W

(3)Maintenance
1)Electrometric box should be put in ventilated, dry and clean place. Don't allow nearby strong electromagnetic interference. Charge the machine 1-2 times per month, 1-2 hours each time on self-checking situation provided the machine is not frequently used. Cover the machine by dust-proof shield during the time out of operation. Put desiccant in the electrometric box and replace it regularly provided the machine is put in the humid area.
2)Check every index of the electrometric box and accuracy of the complete machine. Assign sole operator to keep and operate it.
3)Note: Don't adjust any potentiometer.

Armature Balancing Machine with Weight Adding
