Middle Size Armature Balancing Testing and Balancing Machine

Large Image : Middle Size Armature Balancing Testing and Balancing Machine

Product Details:

Contact Now

Middle Size Armature Balancing Testing and Balancing Machine

Description

Model NO.:	WIND-DAB-5Z	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

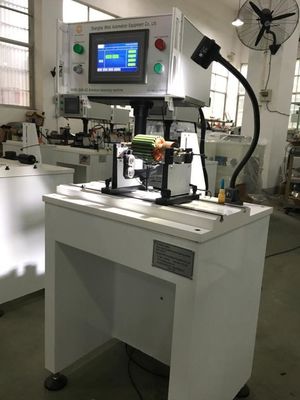

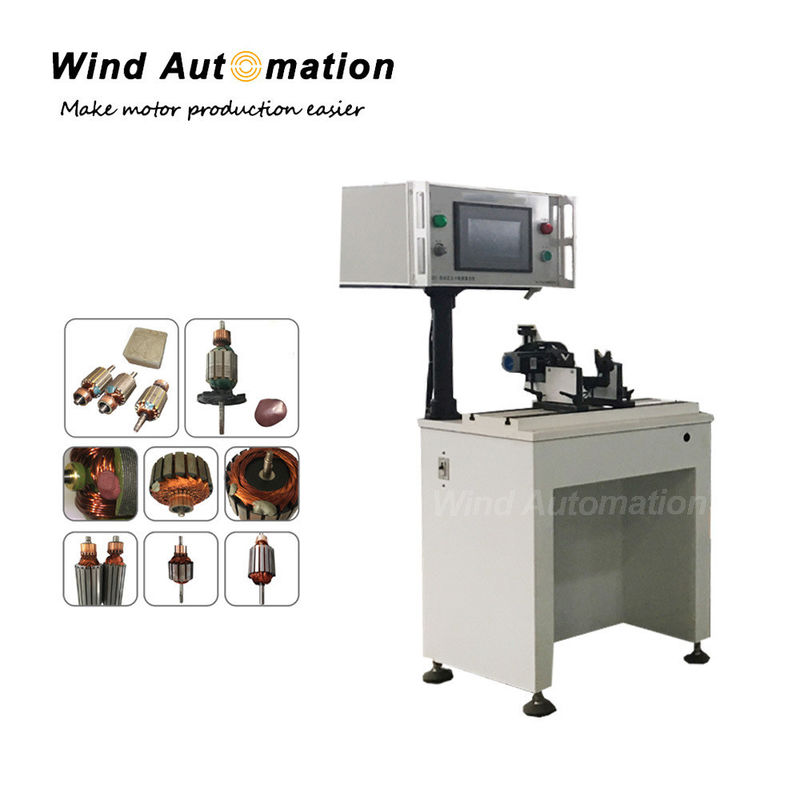

Armature Balancing Testing and Balancing Machine

Driving system is installed on the machine base and use step motor to drive the driving wheel. If loose lock screw and rotate the round handle, the height of driving rack could be adjusted as per workpiece O.D. The O-shape belt should be of much elastic, soft and wearproof to ensure driving balancing.

(1)Working Environment
a. Temperature: -5-45ºC, Humidity: <80%
b. Power: 220V 50HZ; Vary range for voltage<±10%
c. Without strong electromagnetic interference, vibration and with cleaning and ventilate place.

(2) Applications

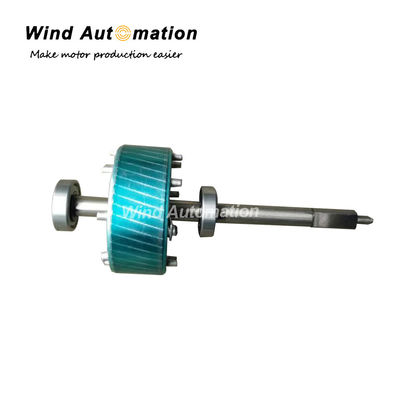

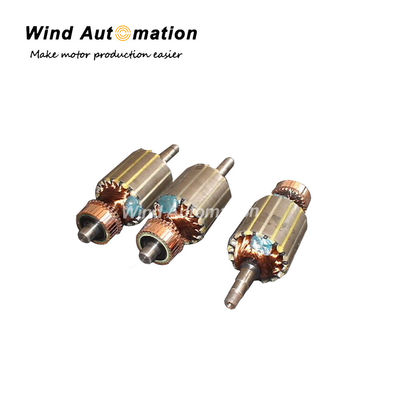

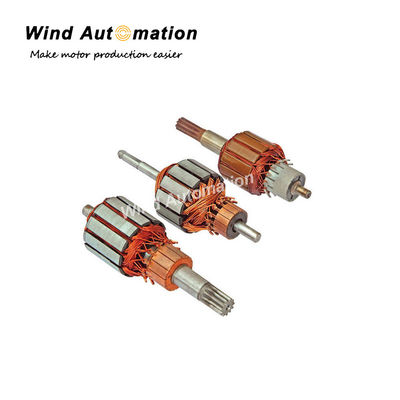

Suitable for power tool motor, DC motor, mixer motor, wiper motor, vacuum cleaner motor, window lifter motor, condenser motor, etc.

(3)Specification

Armature stack length	10~200mm
Armature OD	Max 260mm
Shaft OD	3-40mm
Armature weight	0.1~5Kg
Unbalancing value	0~600g.mm/kg
Min residual unbalance value	≤0.1g·mm/kg
Driving method	Belt
Balancing speed	500-5000r/min
Power supply	220V
Power	200W

(4)Feature
Auto positioning
Weight adding balancing method
Unbalancing weight measurement before balancing
No skilled operator need
Adding Balancing mud manually
Fast and easy readjustment
Provide customized service
Wide application and strong applicability
V-shape support block

Armature Balancing Testing and Balancing Machine
