Compact WIND-DAB-5Z Rotor Balancing Machine for Small Armature Micro Motor Armature

Large Image : Compact WIND-DAB-5Z Rotor Balancing Machine for Small Armature Micro Motor Armature

Product Details:

Contact Now

Compact WIND-DAB-5Z Rotor Balancing Machine for Small Armature Micro Motor Armature

Description

Model NO.:	WIND-DAB-5Z	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

Rotor Balancing Machine for Small Armature Micro Motor Armature

Before armature balancing, user needs to do mechanical adjustment and set touch screen parameter. Before operation, clean armature shaft neck, holder and outside of the driving belt.

Specification

Max unbalancing value tolerance	±1mg
Max phase tolerance	±2.5º
Max error of planar calculation	±1%
Max error of semi-diameter calculation	±1%
Workpiece weight range	0.1-5kg
Max diameter of workpiece	260mm
Support shaft neck range	3-40mm
Min distance between 2 pcs support rack	30mm
Max distance between 2 pcs support rack	500mm
Power	200W
Driving method	O shape belt
Diameter range of belt driving position	20-85mm
Balancing speed	900~500rpm
Power supply	220V
Min residual unbalance value	≤0.1g·mm/kg
URR	≥90%
Measure time	< 6s

Feature
a. Easy operation step
b. Precisely automatic stop for positioning without marking through the measuring process.
c. Tracking the slot No. to reduce or avoid the positioning error resulting from belt sliding away. The phase tolerance by repeated measuring is within ±2.5°.
d. Only setting the armature semi-diameter r, the distance between calibrating sides b, the distance between calibrating side and support point a/c and speed parameter of stepper motor before starting the machine is ok.

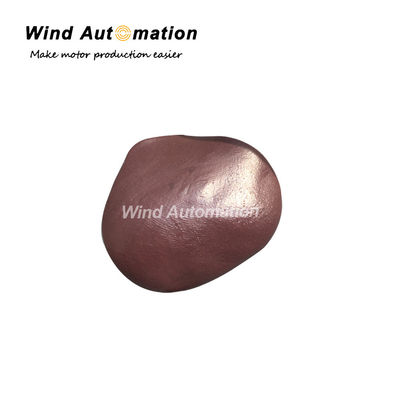

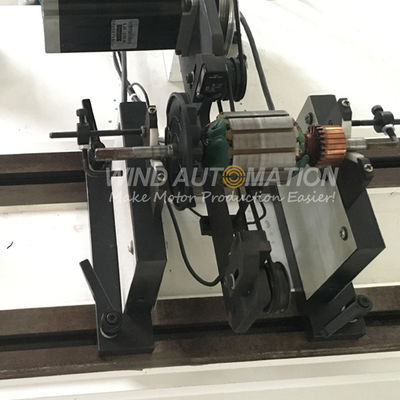

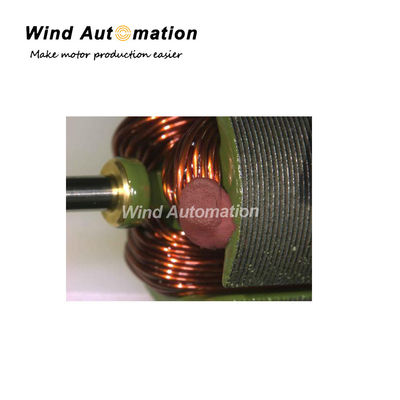

e. The armature comes to support rack; the sensor switch will start the stepper motor. After the measuring, the unbalancing value for both sides will be shown on touch screen. By default, it will stop left side; operator could add the adhesive referring to the unbalancing value, then press "changing phase" to stop at right side. So does right side.

Working Environment
a. Temperature: -5-45ºC, Humidity: <80%
b. Power: 220V 50HZ; Vary range for voltage<±10%
c. Without strong electromagnetic interference, vibration and with cleaning and ventilate place.

Applications

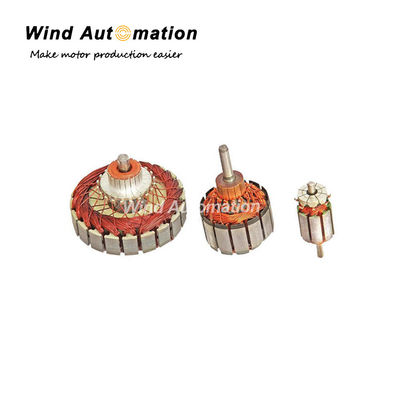

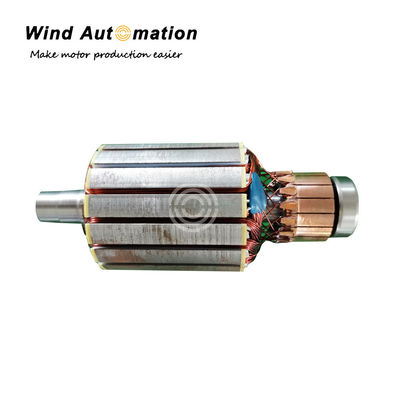

Suitable for power tool motor, DC motor, mixer motor, wiper motor, vacuum cleaner motor, window lifter motor, condenser motor, etc.

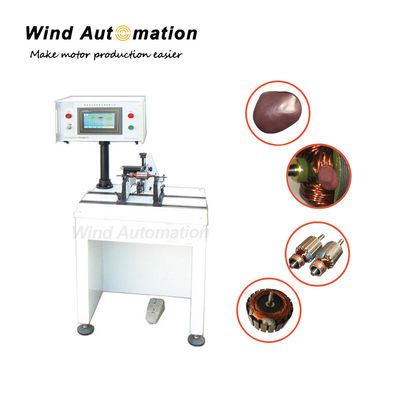

Working station
Rotor Balancing Machine for Small Armature Micro Motor Armature
