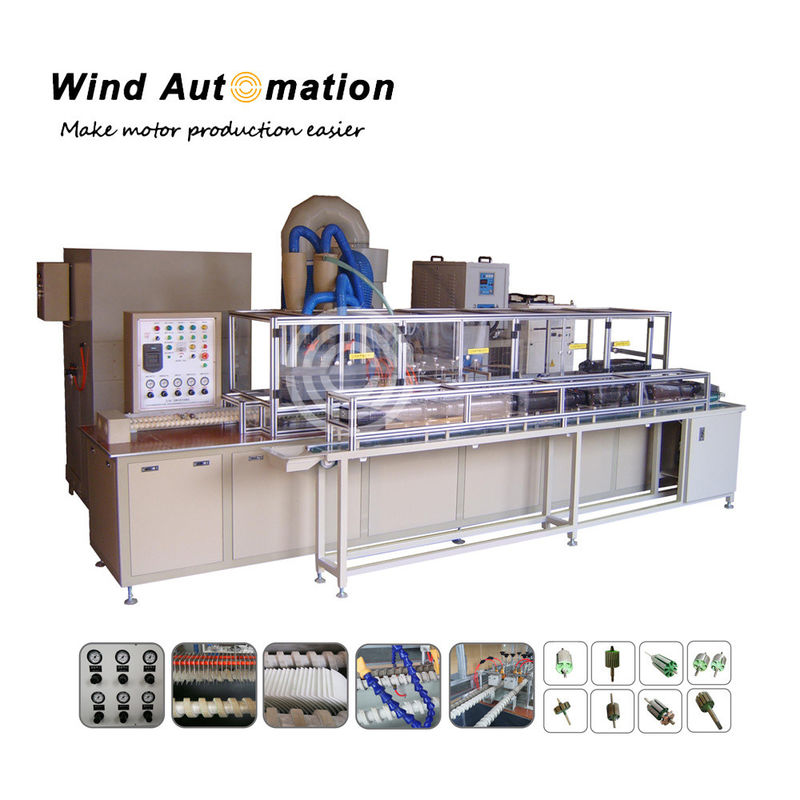

Product Details:
|
| Model NO.: | WIND-JF | Specification: | Middle Size |
|---|---|---|---|
| Trademark: | Wind Automation | Origin: | China |
| HS Code: | 8479811000 | Production Capacity: | 100 Sets/Year |
(1) Working Process
High frequency deoil---fan cooling---powder coating---powder clearning---curing---air cooling
(2) Application
It is widely used in automotive industries, such as ABS, HVAC, window lift, seat adjuster, sun roof and fuel pump armatures etc; as well as Industrial motor applications like tools, home appliances and so on.
| Model | 100 | 80GG | 80GD | 50H | Lab model | note | |
| Part size | Max OD | 160 | 120 | 120 | 100 | 200 | Is able to be tailored produced |
| Max core length | 50 | 50 | 50 | 50 | 80 | ||
| Max shaft length | 180 | 180 | 180 | 180 | 180 | ||
| transfer speed m/min | 0.1-1.5 | 0.1-1.5 | 0.1-1.5 | 0.1-1.5 | Electronic driving | Stepless adjustable | |
| output(pc/h) | 2500 | 1500 | 1500 | 800 | 10-60 | фMax≤20mm | |
| Curing method | High frequency | High frequency | High frequency | Curing oven | Curing oven | Oven is prepared by customer | |
| Coating thickness(mm) | Adjustable within 0.15mm - 0.5mm | ||||||
(4) Features
Wide application
Suitable for mass production
High quality level of the powder process
With powder recylcing function
Fully automatic working cycle after loading of the armature
High efficiency, automation and productivity
Provide customized service
Automatic operation as a single unit or as a part of an automatic line
