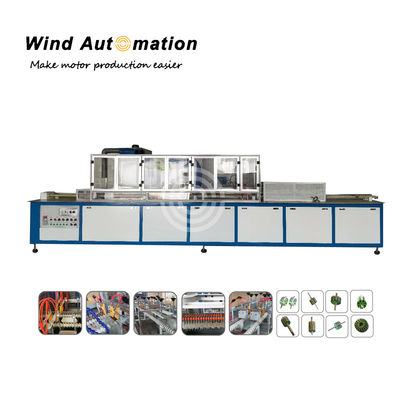

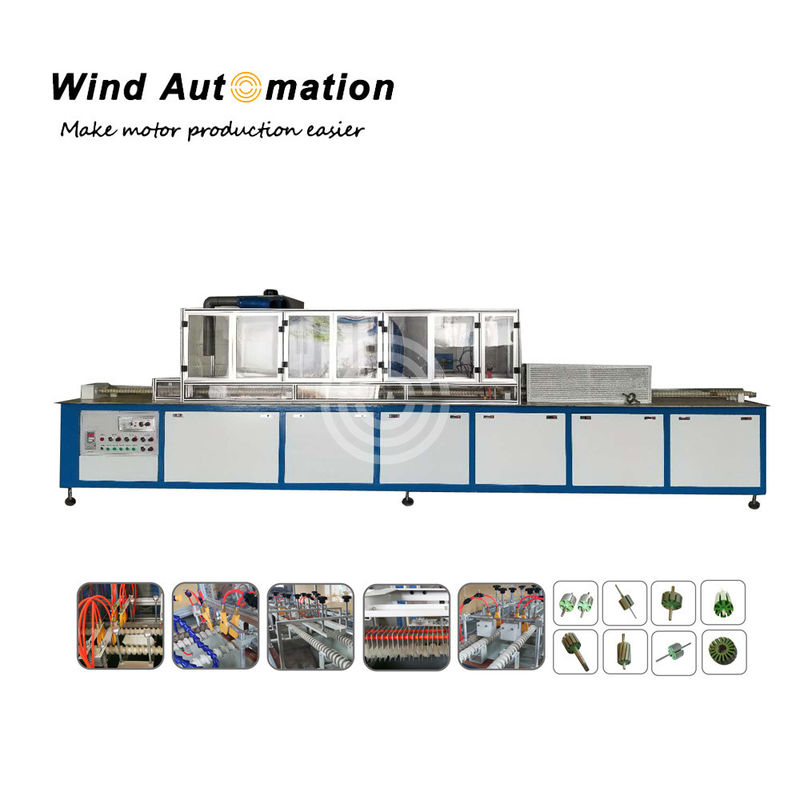

Product Details:
|
| Model NO.: | WIND-JF | Condition: | New |
|---|---|---|---|
| Customized Service: | Provided | Transport Package: | Wooden Case |
| Specification: | Middle Size | Trademark: | Wind Automation |
| Origin: | China | HS Code: | 8479811000 |
| Production Capacity: | 100 Sets/Year | Package Size: | 5000.00cm * 1000.00cm * 850.00cm |
| Package Gross Weight: | 1000.000kg |
(3) Application
It is widely used in automotive industries, such as ABS, HVAC, window lift, seat adjuster, sun roof and fuel pump armatures etc; as well as Industrial motor applications like tools, home appliances and so on.
| Model | 100 | 80GG | 80GD | 50H | Lab model | note | |
| Part size | Max OD | 160 | 120 | 120 | 100 | 200 | Is able to be tailored produced |
| Max core length | 50 | 50 | 50 | 50 | 80 | ||
| Max shaft length | 180 | 180 | 180 | 180 | 180 | ||
| transfer speed m/min | 0.1-1.5 | 0.1-1.5 | 0.1-1.5 | 0.1-1.5 | Electronic driving | Stepless adjustable | |
| output(pc/h) | 2500 | 1500 | 1500 | 800 | 10-60 | фMax≤20mm | |
| Curing method | High frequency | High frequency | High frequency | Curing oven | Curing oven | Oven is prepared by customer | |
| Coating thickness(mm) | Adjustable within 0.15mm - 0.5mm | ||||||
(5)Electrostatically Coating
Powder coating is a type of coating that is applied as a free-flowing, dry powder. The main difference between a conventional liquid paint and a powder coating is that the powder coating does not require a solvent to keep the binder and filler parts in a liquid suspension form. The coating is typically applied electrostatically and is then cured under heat to allow it to flow and form a "skin". The powder may be a thermoplastic or a thermoset polymer. It is usually used to create a hard finish that is tougher than conventional paint. Powder coating is mainly used for coating of metals, such as household appliances, aluminium extrusions, drum hardware, and automobile and bicycle parts,such as armature,rotor,stator powder coating, Newer technologies allow other materials, such as MDF (medium-density fibreboard), to be powder coated using different methods.
For example, for the drill motor and power tool motor,as it rotate and working speed is very high, epoxy coating is mainly for abrasion protection.
