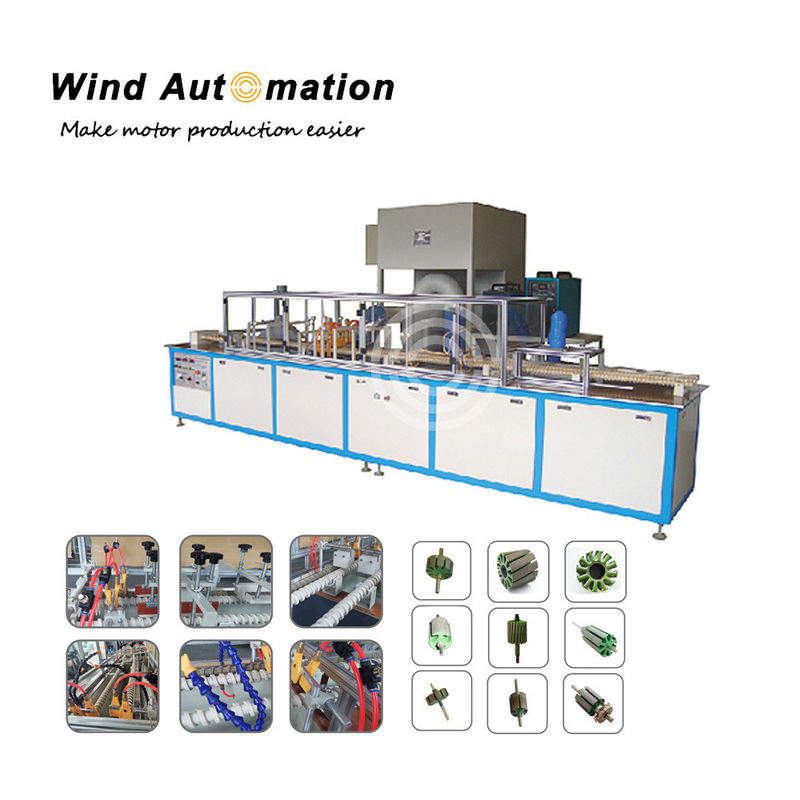

Large Image : Electrostatic Epoxy Resin Coating Machine for Rotor Mass Production

Product Details:

Contact Now

Electrostatic Epoxy Resin Coating Machine for Rotor Mass Production

Description

Model NO.:	WIND-JF	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

Electrostatic Epoxy Resin Coating Machine For Rotor Mass Production

This resin coating machine is suitable for rotor powder coating mass production. Resin coating, powder cleaning and recycling, curring are done by this machine. Powder coating process is conducted on the electrostatic fluid chamber. Rotor powder curring process is achieved by high-frequency induction heater.

(1) Working Process
High frequency deoil---fan cooling---powder coating---powder clearning---curing---air cooling

(2) Features
Wide application
Suitable for mass production
High quality level of the powder process
With powder recylcing function
Fully automatic working cycle after loading of the armature
High efficiency, automation and productivity
Provide customized service
Automatic operation as a single unit or as a part of an automatic line

(3) Application
It is widely used in automotive industries, such as ABS, HVAC, window lift, seat adjuster, sun roof and fuel pump armatures etc; as well as Industrial motor applications like tools, home appliances and so on.

(4)Specifications

Model		100	80GG	80GD	50H	Lab model	note
Part size	Max OD	160	120	120	100	200	Is able to be tailored produced
	Max core length	50	50	50	50	80
	Max shaft length	180	180	180	180	180
transfer speed m/min		0.1-1.5	0.1-1.5	0.1-1.5	0.1-1.5	Electronic driving	Stepless adjustable
output(pc/h)		2500	1500	1500	800	10-60	фMax≤20mm
Curing method		High frequency	High frequency	High frequency	Curing oven	Curing oven	Oven is prepared by customer
Coating thickness(mm)		Adjustable within 0.15mm - 0.5mm
