100 Sets/Year WIND-AT-200 Motor Rotor Isolation Resistance Tester for Mixer and Juicer

Large Image : 100 Sets/Year WIND-AT-200 Motor Rotor Isolation Resistance Tester for Mixer and Juicer

Product Details:

Contact Now

100 Sets/Year WIND-AT-200 Motor Rotor Isolation Resistance Tester for Mixer and Juicer

Description

Model NO.:	WIND-AT-200	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

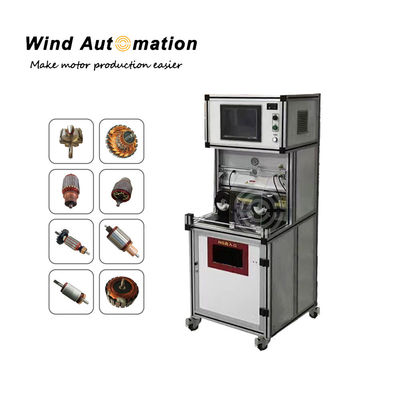

Mixer/Juicer Motor Rotor Testing Panel Isolation Resistance Tester

This testing machine has a wide application, suitable for various types of DC motor armatures to do performance testing. Commutator bar number should be less than 36pcs.

(1) Features
Test quality report can be generated and printed
Various testing options available to test armature performance
High automation and efficiency
Each testing item programmable
Each test items could be on or off randomly
Customized around your armature and requirements
Memory storage of different armature's parameters
Focus on precision, ﬂexibility and customization
Quick and easy readjustment to other armature types

(2) Testing items

Test Items	Test Description	Accuracy
Bar to Bar resistance	0.1mΩ~1Ω (Automatic ambient temperature compensation)	≤±0.5% Full scale
Welding resistance	0.001mΩ-10mΩ	±10μΩ
Cross resistance	0.1mΩ~1Ω (Automatic ambient temperature compensation)	≤±0.5% Full scale
Surge	100-3000Vpp (Max 36sets waveform)	±2.5%
Isolation resistance	DC 500V/1000V	0.1-500MΩ ≤±2.5% Full scale
Hipot	AC 100-1000V	0-20mA ≤±2.5% Full scale

(3)Machine configuration
15'' Touch screen
Sampling Chip: BB/TI (USA import)
Relay:NAIS(Japan Panasonic)
High voltage relay:Toward
Pneumatic parts: Airtac
Mixer/Juicer Motor Rotor Testing Panel Isolation Resistance Tester
