Customized Two Poles Stator Automatic Coil Winding Machine for Customer Satisfaction

Large Image : Customized Two Poles Stator Automatic Coil Winding Machine for Customer Satisfaction

Product Details:

Contact Now

Customized Two Poles Stator Automatic Coil Winding Machine for Customer Satisfaction

Description

Model NO.:	WIND-SW-2	2 Pole Stator Winding Service:	Engineers Avaiable To Service Overseas
Condition:	New	Customized Service:	Provided
Transport Package:	Wooden Case	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year
Package Size:	1700.00cm * 1200.00cm * 1800.00cm	Package Gross Weight:	1100.000kg

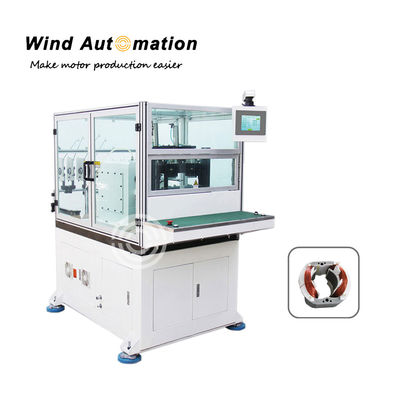

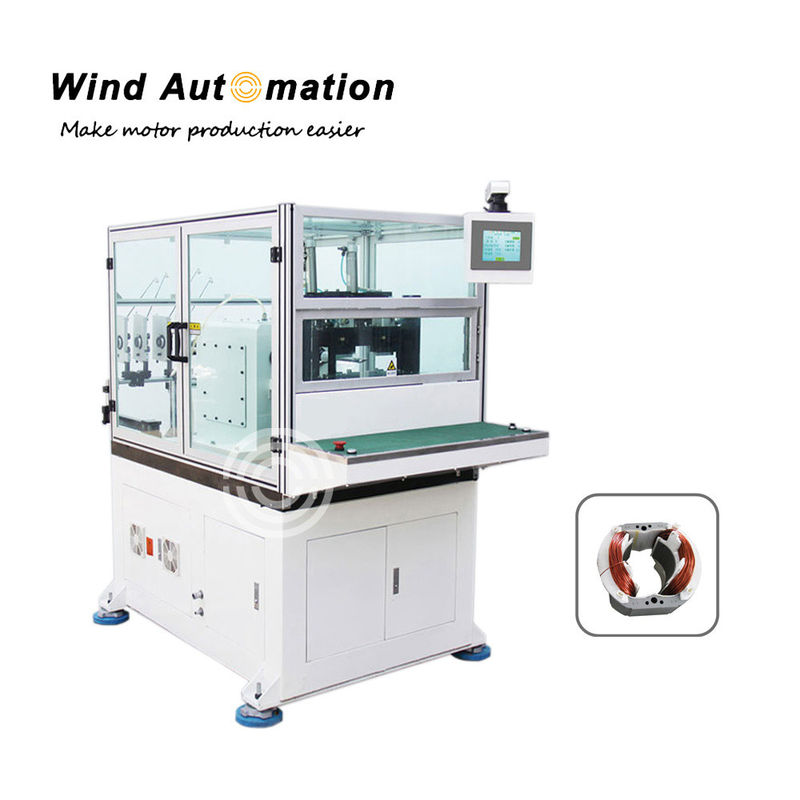

Two Poles Stator Automatic Coil Winding MachineMotor Coil Winder

This stator winding machine WIND-SW-2 is designed for producing coil winding of two-poles stator, such as mixer motor, grinder motor, vacuum cleaner motor etc. With double working stations, this machine can synchronously wind two stators. Winding programs can be edited and stored in the touch screen memory.

(1) Specifications

Stator OD	50-150mm
Stack length	20-60mm
Wire diameter	0.15-1.3mm
Turn number	0-9999
Pole no.	2 poles
Spindle speed	0-450 rpm
Air supply pressure	5-7 Kg/cm2
Voltage	AC380V 50/60Hz
Weight	1200Kg
Dimension	1050X2300X1750mm

(2)Application
This stator winding machine is designed for producing coil winding of two-poles stator, such as mixer motor, grinder motor, vacuum cleaner motor etc.

(3)Operation Procedure

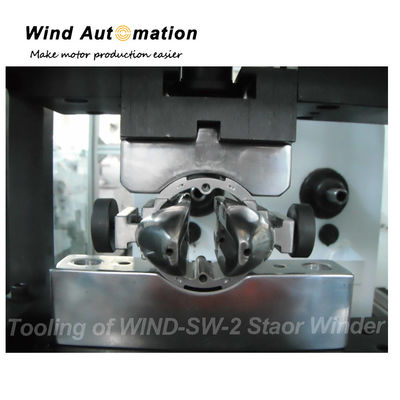

Fix winding tools on the stator core.
Then load the whole set on the winding area of machine.
Press Start button.
Machine will automatically do winding.
Unload the stator
