Automatic Hairpin Coil Forming Machine for Alternator Stator

Description

Model NO.:	WIND-AWF	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

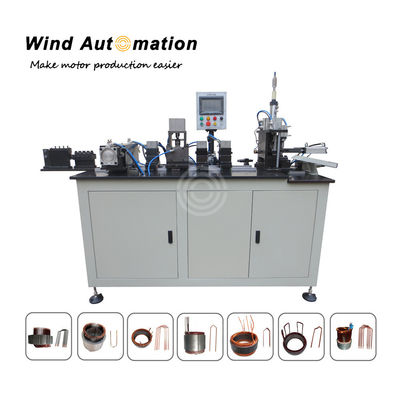

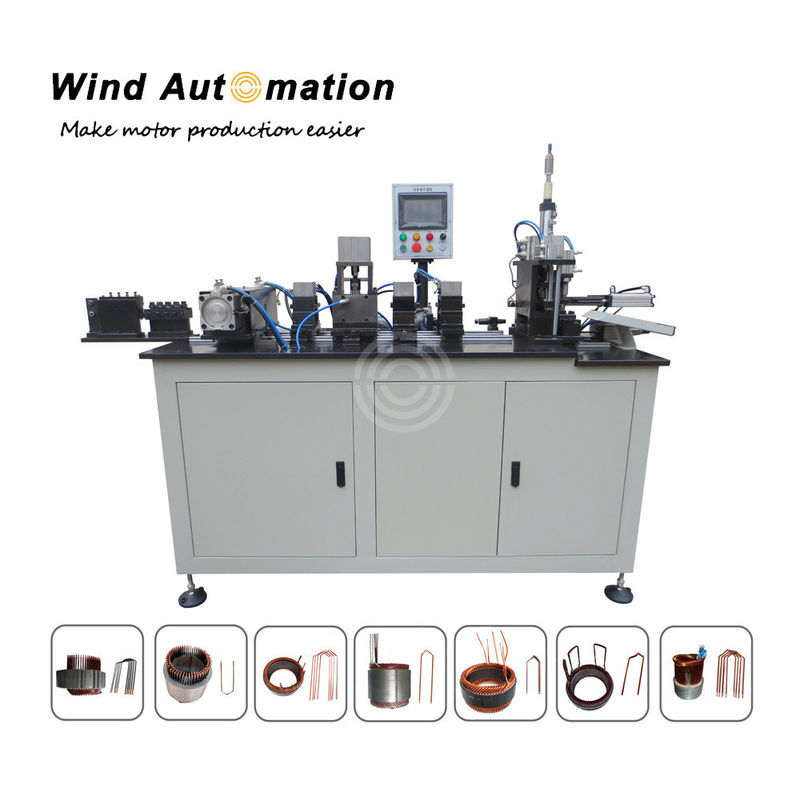

Automatic Hairpin Coil Forming Machine for Alternator Stator

This hairpin coil forming machine is suitable for alternator stators with flat wire. Machine can do wire paint peeling, wire feeding, wire bending, wire forming automatically. The working productivity is about 4s/pc.

(1) Application

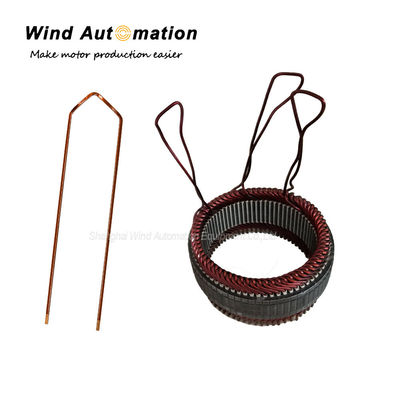

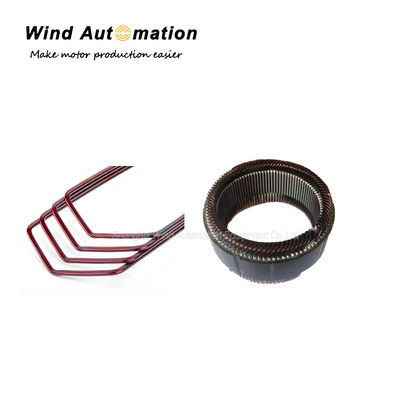

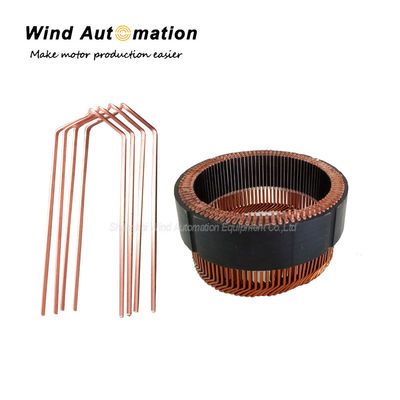

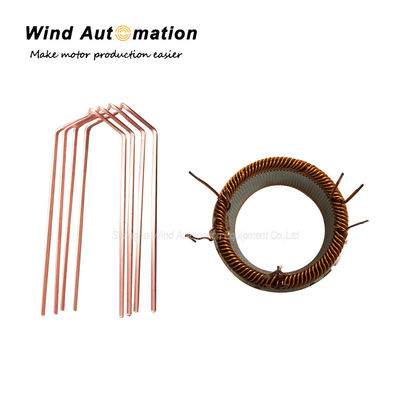

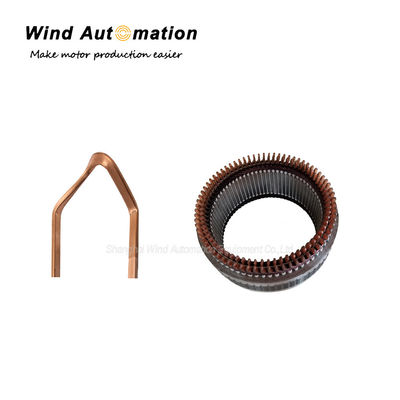

This machine is designed for manufacturing hairpins for alternator or generator stators.

(2)Specifications

Power supply	AC 380V 50Hz
Total power	2.2KW
Productivity	4s/pc
Wire feeding length	0~250mm
Weight	700KG
Dimension	1800x700x1700mm

(3) Features
Capable of producing conductor with customized size
Mitsubishi PLC control, colorful touching screen
Automatic hairpin forming process
High efficiency, automation and productivity
High repeatability of the conductor's shape and dimensions

(4)Machine configuration
Mitsubishi PLC and servo motor
Weinview touch screen
AIRTAC or SMC pneumatic components
HIWIN linear guide
Schneider electrical components
Industrial vacuum cleaner
Dereeler
