Generator Stator Winding Inserting Machine

Both Manual and automatic winding line are available for different generator manufacturer


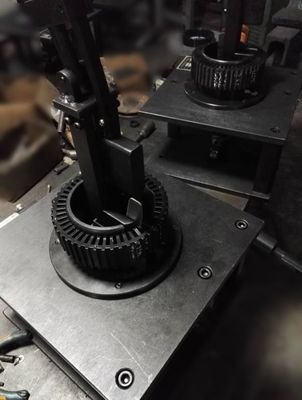

How To Wave Wind Alternator Stator Coil Automotive Estatores Manually WIND-AW-S



Application:



Wind and insert wave shape coil winding for auto generator stator,automotive alternator,estatores



Advantages:



1. Fully mechanical machine per stator size and winding way, no maintenance needed



2. Economic alternator stator coil wave winding,suitable for small quality production or rewind shop



3. Stator yield from 40pcs to 150pcs per day







Main Data:



Dimension 420mm*430mm*440mm (17in*17in*20in)



Weight around 40KGS(88lb)



Wire size handled 1.0mm to 1.9mm (AWG12~AWG18)



Production output is related to the wave winding diagram ( wire diameter and turns no.), slot numbers



When sending inquiry please provide below information,



1. Wound Stator Photo with winding diagram



2. Winding diagram should include wire diameter, turns no. and slot numbers

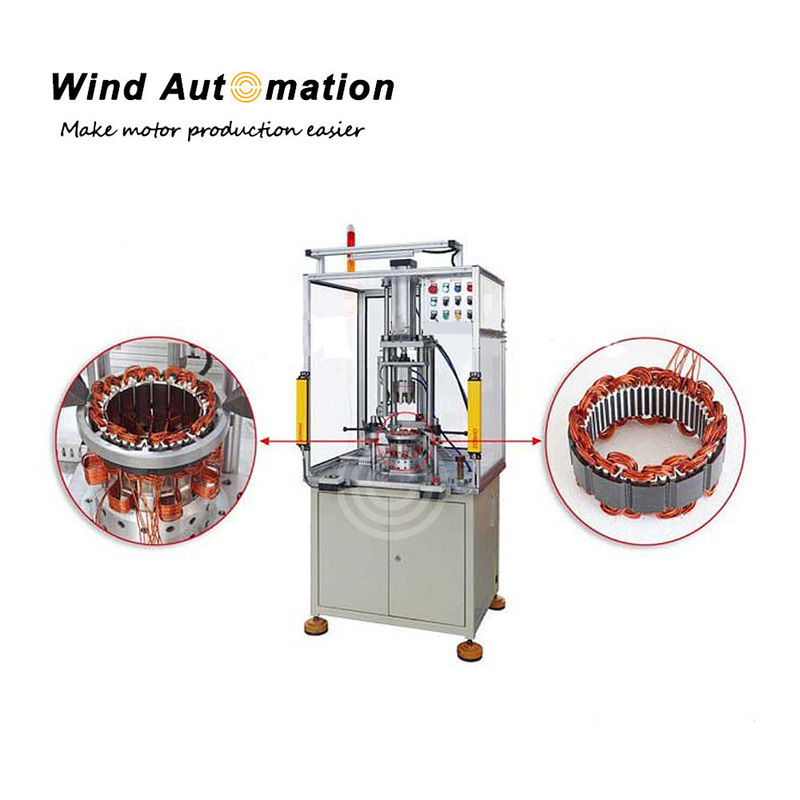

Generator stator winding inserting machine has a wide range of application. It is used to insert coil and wedge into stator slot.

(1) Specifications   This coil inserting machine is suitable for automobile generator and alternator motor stator with high slot filling rate.

(3)  Features
This coil inserting machine can be customized accordingly.
Coil and wedge should be inserted simultaneously.
Breakdown could be diagnosed automatically.
After cutting, paper edge should be neat, no damage, free of burr.
After coil and wedge inserted, no damage or movement of slot paper and copper wire, no deformation of stator and lamination.
Both copper wire and aluminium wire are applicable.
Mitsubishi PLC and touch screen
This machine has fixed foot and removable wheel.
Wedge should not be damaged, no burr in the surface, no movement or slide.
The wedge feeding length, cutting, forming, and inserting slot number could be set in touch screen.

(4) Competitive advantages
This series is economic machine for standard stators.
The machine allows highest fill-factors and narrow slot openings.
The whole set of tooling can be changed as to suite different stators.
coil insertion is controlled by servo motor, while wedge insertion by variable frequency motor.
Parameter of different models can be edited, modified and displayed in the touch screen.
