Alternator Stator Lead Wire TIG Welidng Machine

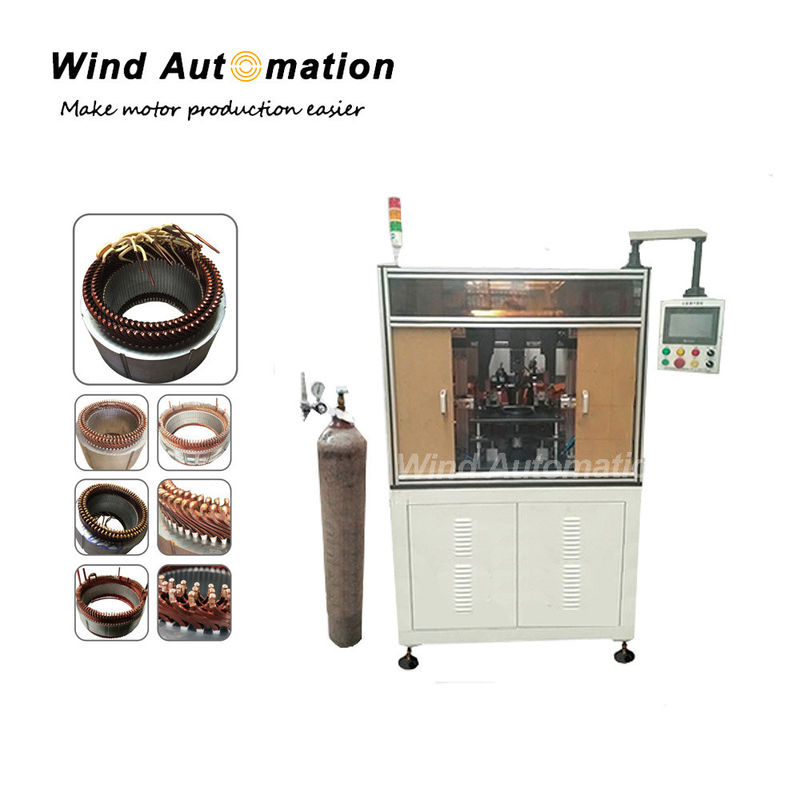

Large Image : Alternator Stator Lead Wire TIG Welidng Machine

Product Details:

Contact Now

Alternator Stator Lead Wire TIG Welidng Machine

Description

Model NO.:	WIND-TIG	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

Alternator Stator Lead Wire TIG Welidng Machine

This TIG machine adpots argon arc to do welding. It is used to weld the lead wire of alternator stator after hairpin inserting.

(1)Specifications

Power Supply	AC 380V 50Hz
Air Pressure Supply	≥0.4MPa
Productivity	1s/slot
Welding method	Argon arc
Weight	700KG
Dimension	1200x750x1800mm

(2) Features
Fully automatic welding cycle after loading of the stator
Temperature control system monitors the temperature of the joint during welding
Water cooling system prevents overheating
High quality level of the wire fusing process
Can be customized accordingly
Memory storage of welding and stator's parameters
User-friendly operator interface via touch screen LCD display

(3)Machine configuration
Mitsubishi PLC
Weinview touch screen
AIRTAC pneumatic components
Schneider electrical components

Alternator Stator Lead Wire TIG Welidng Machine
