Generator Stator Motor Automatic Winding Machine Production Line

Large Image : Generator Stator Motor Automatic Winding Machine Production Line

Product Details:

Contact Now

Generator Stator Motor Automatic Winding Machine Production Line

Description

Model NO.:	WIND-A-L	Winding Line Service:	Engineers Avaiable To Service Overseas
Condition:	New	Customized Service:	Provided
Transport Package:	Wooden Case	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year
Package Size:	200.00cm * 200.00cm * 200.00cm	Package Gross Weight:	3000.000kg

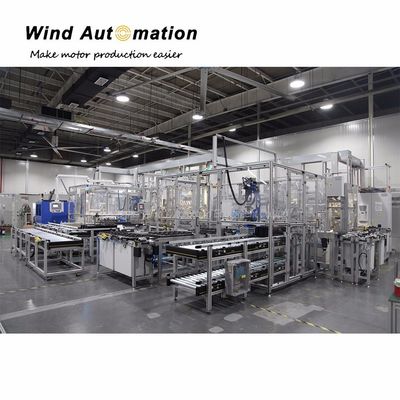

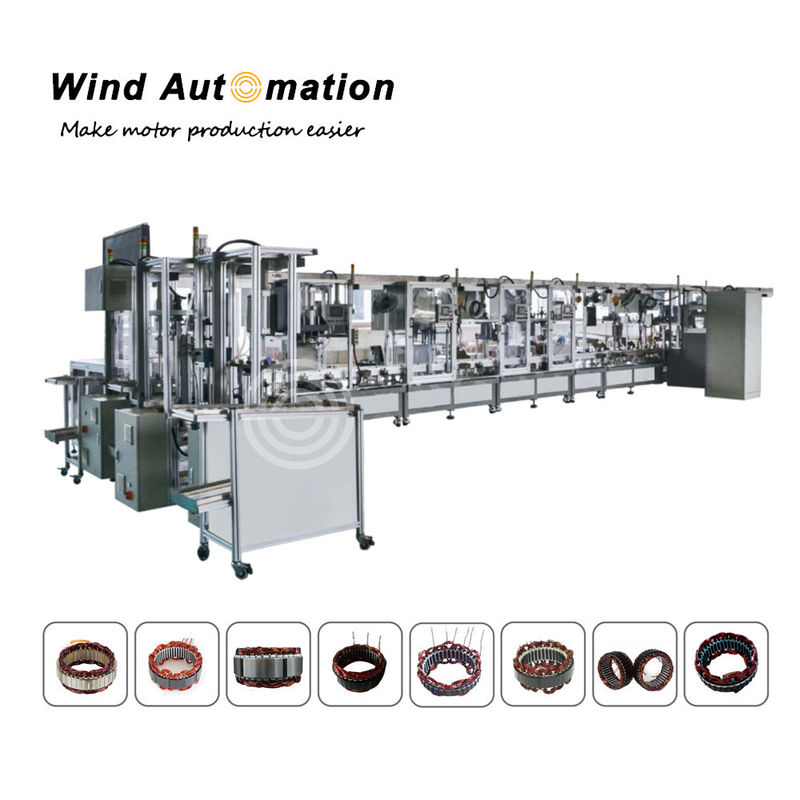

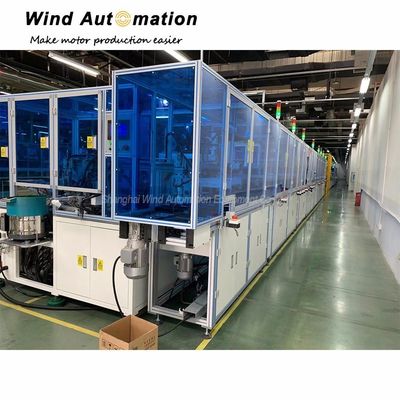

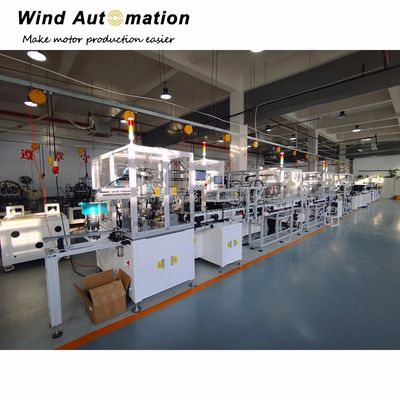

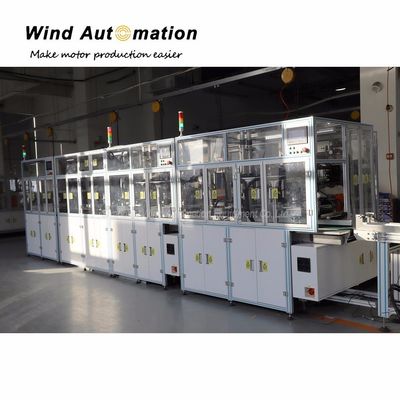

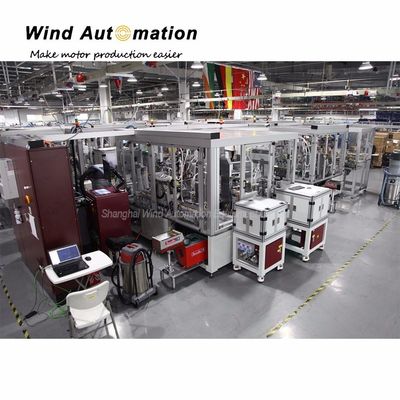

Generator Stator Automatic Winding Production Line

Our stator assembly line is consisted of several machines, such as paper inserting machine, wave winding machine, coil inserting machine, forming machine. The whole line only needs one operator. High automation and efficiency.

The production process will be as below:
Insert paper into stator slot-------Wind coil into winding tooling-------insert wedge into tooling------insert wedge and coil into stator slot--------form coil shape

Information needed for stator automatic assembly line inquiry
1. Stator lamination drawing
2. Stator stack drawing
3. Wire connection drawing
4. Stator application
5. Required productivity
6. Other technical requirement
