Paint Peeling Enamel Remove and Wire Shaping Machine for Haripin Coils

Large Image : Paint Peeling Enamel Remove and Wire Shaping Machine for Haripin Coils

Product Details:

Contact Now

Paint Peeling Enamel Remove and Wire Shaping Machine for Haripin Coils

Description

Specification:	Middle Size	Trademark:	Wind Automation
Origin:	China	HS Code:	8479811000
Production Capacity:	100 Sets/Year

Paint Peeling and Wire Shaping Machine for Haripin Coils

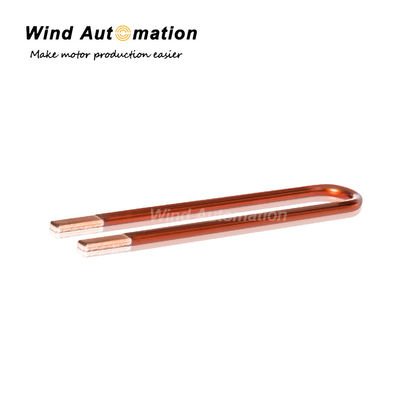

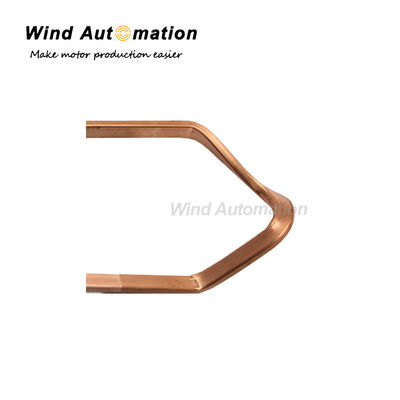

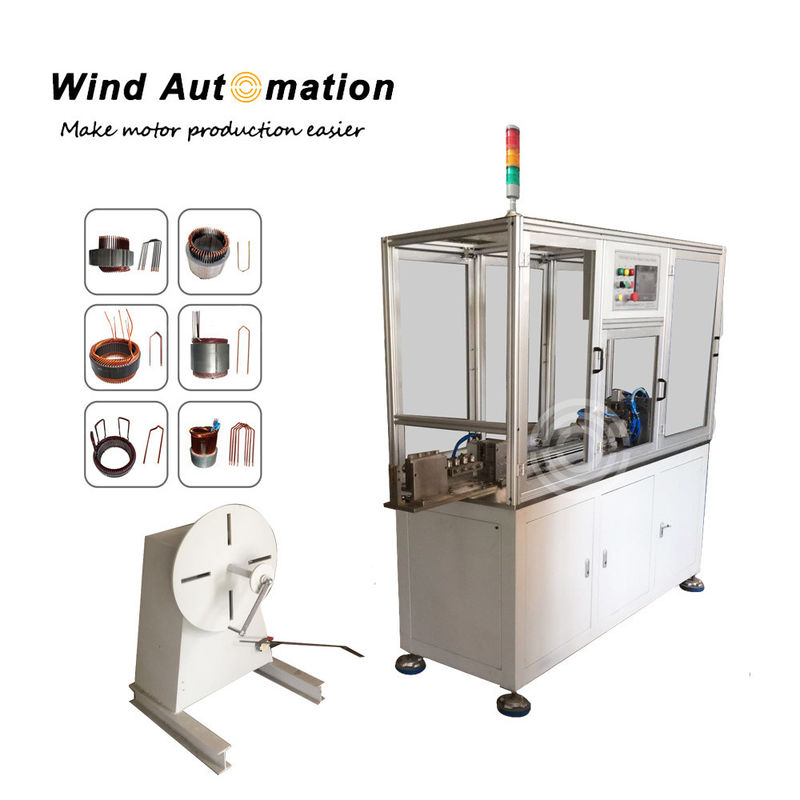

This wire shaping machine is used to produce hairpin coils for alternator or generators stators. It is suitable for flate wire not round wire. It can do wire paint peeling, wire feeding, wire bending, wire forming automatically. The working productivity is about 4s/pc.

(1) Features
Capable of producing conductor with customized size
Mitsubishi PLC control, colorful touching screen
Automatic hairpin forming process
High efficiency, automation and productivity
High repeatability of the conductor's shape and dimensions

(2) Application

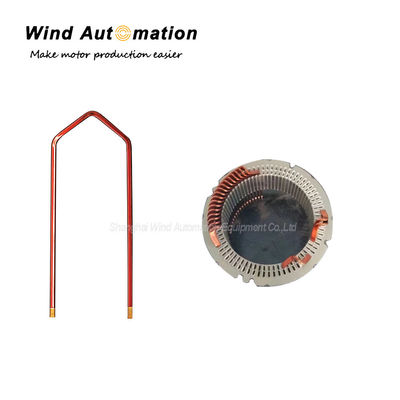

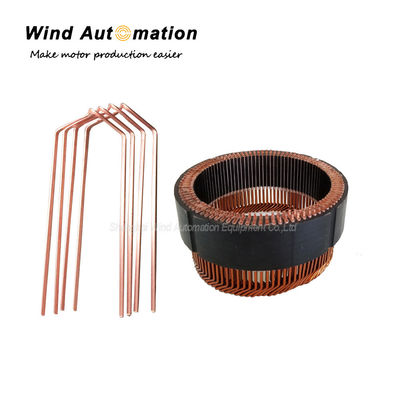

This machine is designed for manufacturing hairpins for alternator or generator stators.

(3)Specifications

Power supply	AC 380V 50Hz
Total power	2.2KW
Productivity	4s/pc
Wire feeding length	0~250mm
Weight	800KG
Dimension	2000x700x1800mm

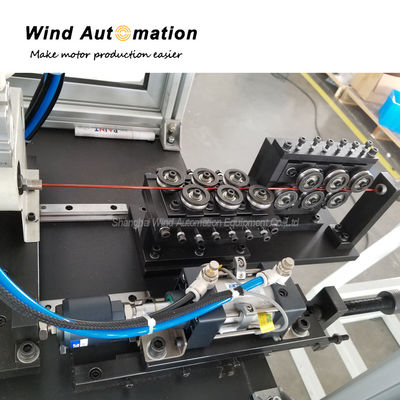

(4)Machine configuration
Mitsubishi PLC and servo motor
Weinview touch screen
AIRTAC or SMC pneumatic components
HIWIN linear guide
Schneider electrical components
Industrial vacuum cleaner
Dereeler
