3phase Motor Fully Automatic Stator Winding and Coil Inserting Machine

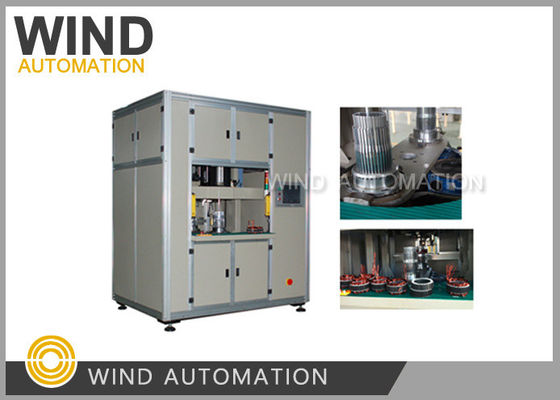

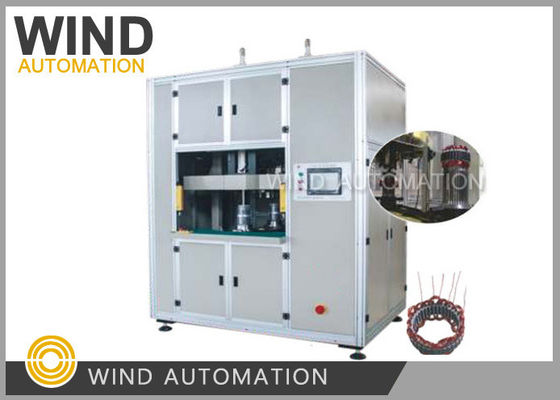

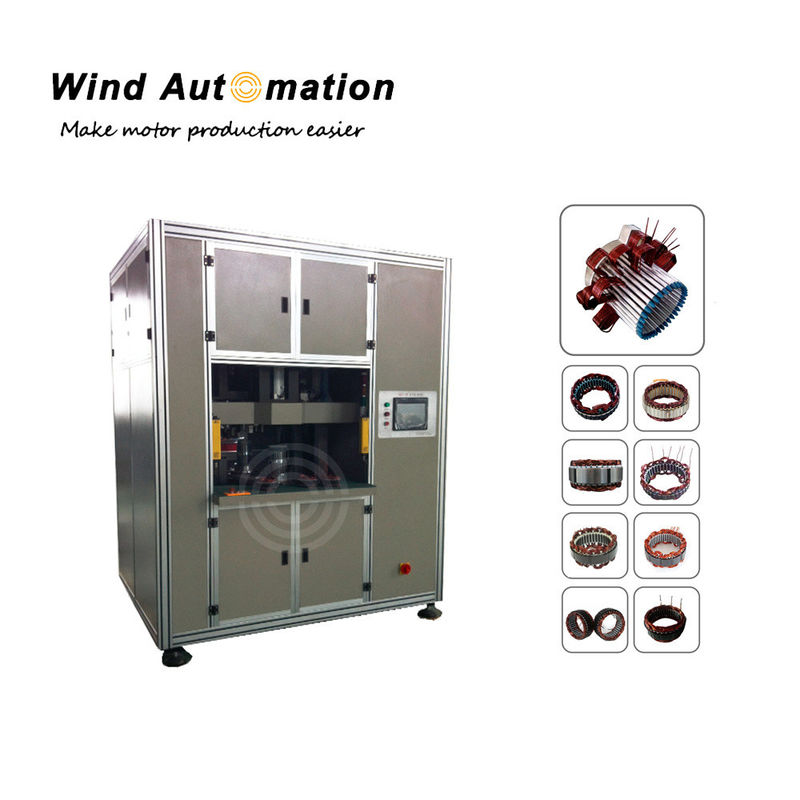

Large Image : 3phase Motor Fully Automatic Stator Winding and Coil Inserting Machine

Product Details:

Contact Now

3phase Motor Fully Automatic Stator Winding and Coil Inserting Machine

Description

Model NO.:	WIND-ASWI	Transport Package:	Wooden Case
Specification:	Middle Size	Trademark:	Wind Automation
Origin:	China	HS Code:	8479811000
Production Capacity:	100 Sets/Year

Generator Stator Winding and Coil Inserting Machine

The machine has two working stations, one for coil winding, the other for coil and wedge inserting. Winding and inserting process are all controlled by servo motor. Auto and jog mode are avaiable.

(1)Features

Two working stations

Easy loading and unloading
High automation and productivity
Fully programmable operation
Parameter adjustable according to different stators

Applied as a stand-alone machine or integrated into a production line

(2)Machine configuration

Power supply	AC 380V 50HZ
Air pressure	0.5~0.7 MPa
Total power	8KW
Winding speed	10~120r/min
Slots	36/48
Wire range	0.15~1.6mm
Stack length	20~130mm
Dimension	1800mmx1900mmx2500mm
