Alternator Stator Coil Forming Machine

Large Image : Alternator Stator Coil Forming Machine

Product Details:

Contact Now

Alternator Stator Coil Forming Machine

Description

Model NO.:	WIND-CX-C	Transport Package:	Wooden Case
Specification:	Middle Size	Trademark:	Wind Automation
Origin:	China	HS Code:	8479811000
Production Capacity:	100 Sets/Year

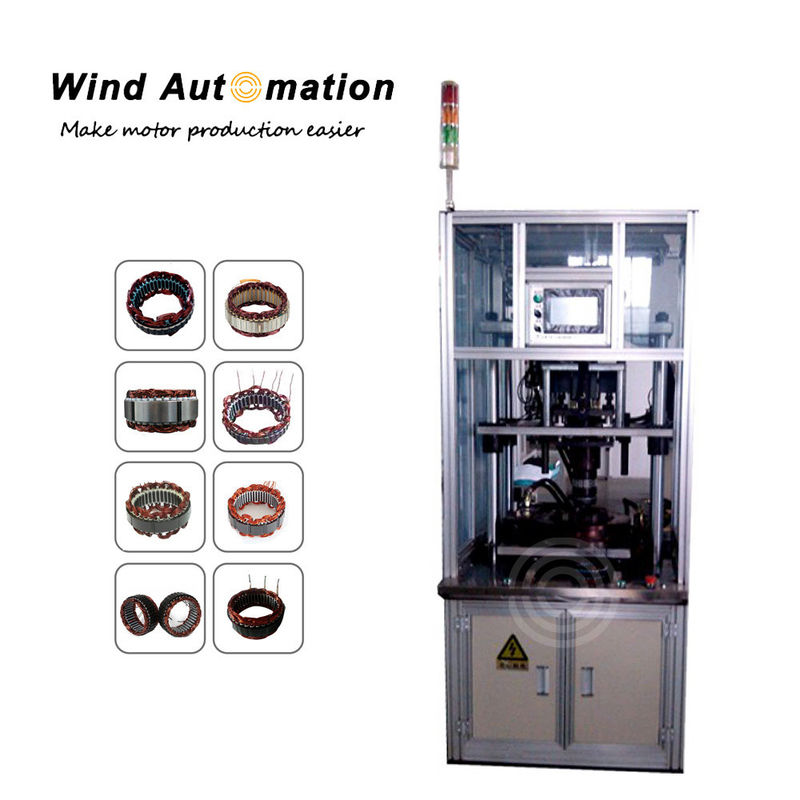

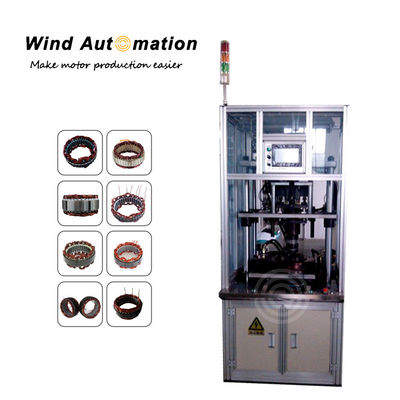

Alternator Stator Coil Forming Machine

This coil forming machine covers a stack length range within 20-42mm. Both tooling change and mechanical adjustment required for different stack length. This machine adopts a turn-over mechanism. It can produce different types stators by changing tooling.

(1)Features

Operation time less 20s.

Operation height is 1050mm

Manually loading and unloading
Fast tooling change design within 20 min.
Fully programmable operation
Parameter adjustable according to different stators

Applied as a stand-alone machine or integrated into a production line

(2)Machine configuration

Item	Brand
Guideway	ABBA/TCP
Sensor	Sick
PLC	MITSUBISHI
Touch screen	MITSUBISHI
Electrical components	Schneider
Pneumatic Components	Festo
Hydraulic system	Kompass

(3) Operation process

Manually load stator into the fixture.

Press Start button then machine will automatically do forming process.
After forming, unload stators.
