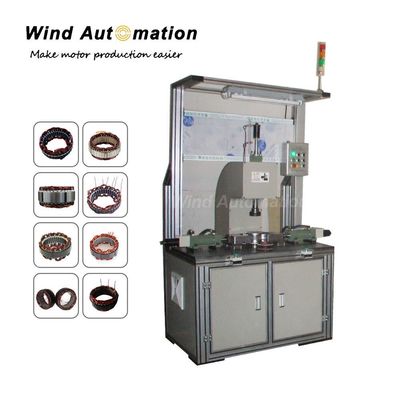

Generator Stator Final Forming Machine

Large Image : Generator Stator Final Forming Machine

Product Details:

Contact Now

Generator Stator Final Forming Machine

Description

Model NO.:	WIND-CX-C	Transport Package:	Wooden Case
Specification:	Middle Size	Trademark:	Wind Automation
Origin:	China	HS Code:	8479811000
Production Capacity:	100 Sets/Year

Generator Stator Final Forming Machine

This coil forming machine adpots stepping indexing structure. It can produce different types stators by changing tooling. Both tooling change and mechanical adjustment required for different stack length.

(1)Features

Operation time less 15s.

Operation height is 1050mm

Manually loading and unloading
Fast tooling change design within 20 min.
Fully programmable operation
Parameter adjustable according to different stators

Applied as a stand-alone machine or integrated into a production line

(2)Machine configuration

Item	Brand
Intermediate relay	Schneider
Circuit breaker	Schneider
AC contactor	Schneider
PLC	MITSUBISHI
Motor & Drive	Adtech
Power supply	Meanwell
sensory switch	Sick
Hydraulic system	Kompass

(3) Operation process

Manually load stator into the fixture.

Press Start button then machine will automatically do forming process.
After forming, unload stators.
