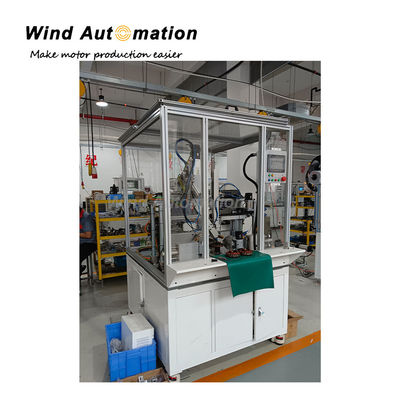

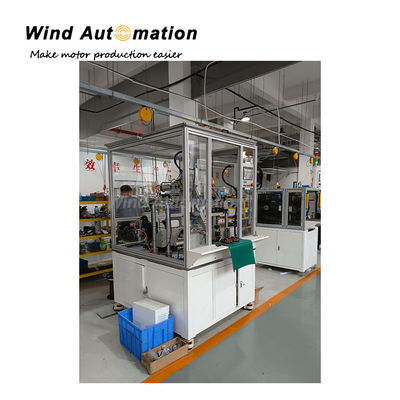

12 Pole Outrunner Stator Coil Winding Shaping Machine

Large Image : 12 Pole Outrunner Stator Coil Winding Shaping Machine

Product Details:

Contact Now

12 Pole Outrunner Stator Coil Winding Shaping Machine

Description

Model NO.:	WIND-IO-009	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

12pole Stator Coil Winding Shaping Machine

This machine adopts hydraulic drive to do coil forming process. Squash in radial at the same time from 4 directions after internal expansion. It has a wide application and easy to operate.

(1) Specifications

Up and down installation travel	200~260mm
Up and down work travel	20~35mm
Horizontally material feeding travel	200mm
Horizontally radial shaping travel	20~35mm
Power	5.5 KW
Power supply	AC 380
Air pressure	0.5~0.7MPa

(2) Application
The stator coil forming machine is suitable for alternator, generator, AC motor and other industry motors.

(3) Features
Mitsubishi PLC program control and LCD display interface
Easy operation and tooling change
Suitable for multi-models production
Wide compatibility property
All the process will be done by machine automatically except for loading and unloading
