Servo Motor Stator Coil Winding Machine

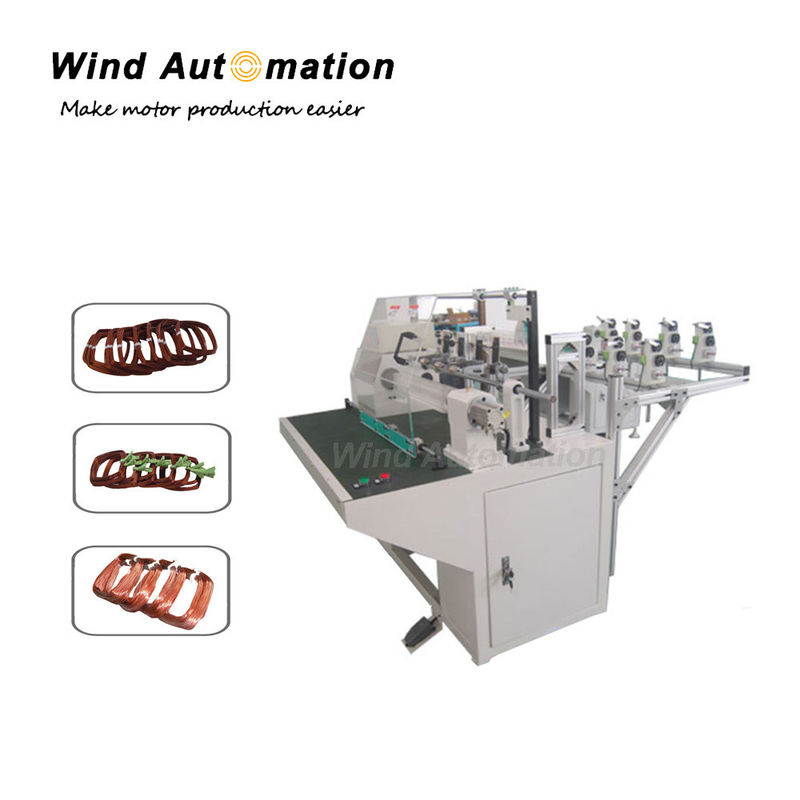

Large Image : Servo Motor Stator Coil Winding Machine

Product Details:

Contact Now

Servo Motor Stator Coil Winding Machine

Description

Model NO.:	WIND-160-CW	Automatic:	Semi-Automatic
Transport Package:	Wooden Case	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

Servo Motor Stator Coil Winding Machine

This stator coil winding machine is suitable for stator with wire diamter within 0.1 to 1.0mm. It can synchronously wind 1-6 coils.

(1) Specification

Wire diameter	0.1~1.0mm
Winding head	1~6 Customized
Winding fixture OD	Max 220mm
No-loading speed	Max 3200r/min
Air pressure	Min 0.4Mpa
Power supply	220V 0.75KW
Weight	About 550KG
Dimension	1550x1250x1300mm

(2) Application
Suitable for stator with multi-connected and multi layer winding. Apply to all kinds of micro motors such as AC motor, pump motor, air conditioner motor, three phase machine, etc.

(3) Feature
Suitable for multi-connect and multi-layer winding
Customized number of winding head within 6
Automatically stop if wire is run out
High quality level of the winding process
Quick change-over of tooling
Memory storage of parameters for 999 stator types
Stator coil winding of most popular induction motor

Servo Motor Stator Coil Winding Machine
