Product Details:
|
| Model NO.: | WIND-550-CW | Automatic: | Semi-Automatic |
|---|---|---|---|
| Transport Package: | Wooden Case | Specification: | Middle Size |
| Trademark: | Wind Automation | Origin: | China |
| HS Code: | 8479811000 | Production Capacity: | 100 Sets/Year |

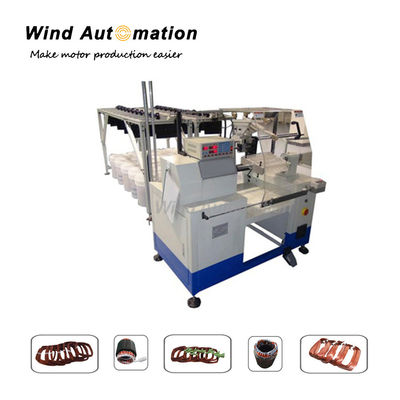

This stator coil winding machine is suitable for stator with multi-connected and multi layer winding.
(1) Specification| Wire diameter | 0.2~1.5mm |
| Stator OD | 210mm |
| Stack height | 300mm |
| Winding head | 1 |
| Swing OD | 550mm |
| Screw travel | 400mm |
| Winding speed | Max 500r/min |
| Air pressure | Min 0.4Mpa |
| Power supply | 220V 2.2KW |
| Weight | About 400KG |
| Dimension | 1360x1300x1280mm |
