Multistrand Type Coil Winding Machine

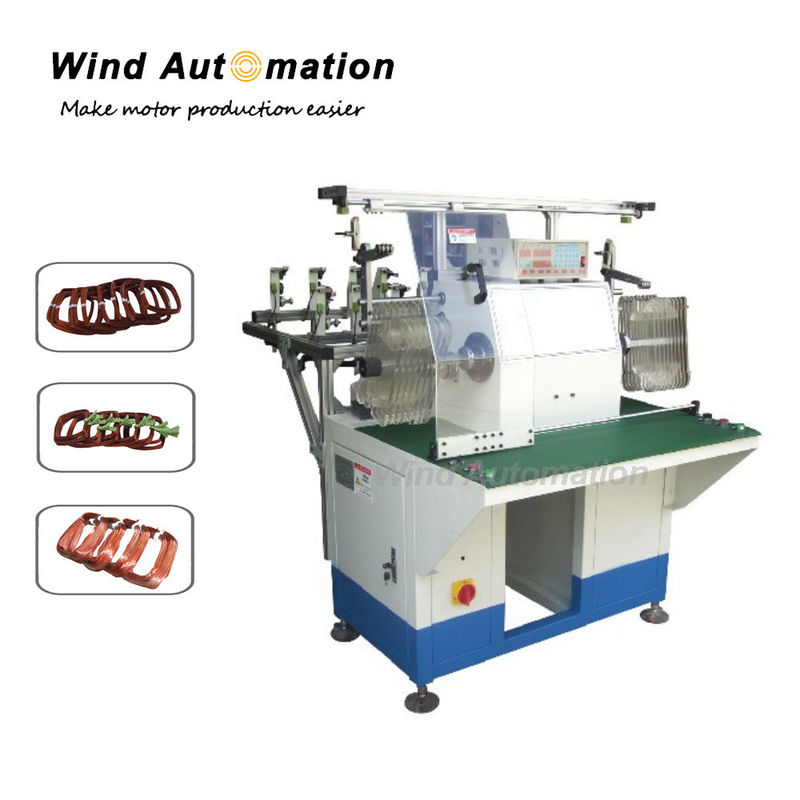

Large Image : Multistrand Type Coil Winding Machine

Product Details:

Contact Now

Multistrand Type Coil Winding Machine

Description

Model NO.:	WIND-350-CW	Automatic:	Semi-Automatic
Transport Package:	Wooden Case	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

Multistrand Type Coil Winding Machine

This stator coil winding machine has a wide application. The tooling should be unloaded manually after coil winding.

(1) Specification

Wire diameter	0.2~1.5mm
Stator OD	210mm
Stack height	180mm
Winding head	3
Swing OD	350mm
Screw travel	400mm
Winding speed	Max 1600r/min
Air pressure	Min 0.4Mpa
Power supply	220V 2.2KW
Weight	About 350KG
Dimension	1300x1260x1280mm

(2) Application
Apply to all kinds of micro motors such as AC motor, servo motor, hybrid car motor, three phase machine, etc.

(3) Feature
Suitable for multi-connect and multi-layer winding
Customized number of winding head within 3
Automatically stop if wire is run out
High quality level of the winding process
Quick change-over of tooling
Memory storage of parameters for 999 stator types
Stator coil winding of most popular induction motor
