155mm Spindle Spacing BLDC Motors Inslot Stator Needle Winding Machine Brushless Motor Winder

Large Image : 155mm Spindle Spacing BLDC Motors Inslot Stator Needle Winding Machine Brushless Motor Winder

Product Details:

Contact Now

155mm Spindle Spacing BLDC Motors Inslot Stator Needle Winding Machine Brushless Motor Winder

Description

Model NO.:	WIND-BLDC-4	Voltage:	380V
Weight:	680kg	Dimension:	1000X1100X1700mm
Air Source:	7 Kg/Cm	Spindle Spacing:	155mm
Transport Package:	Wooden Case	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year
Package Size:	1800.00cm * 1650.00cm * 1900.00cm	Package Gross Weight:	890.000kg

BLDC Motors Inslot Stator Needle Winding Machine Brushless Motor Winder

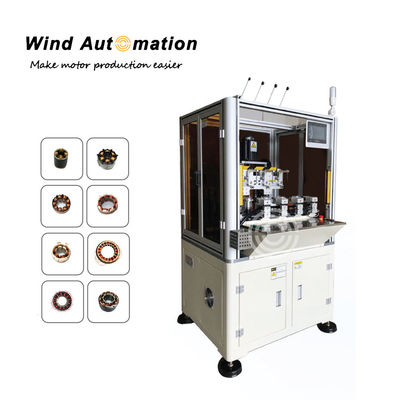

This needle winding machine is used to wind stator coils. 4 working stations can do winding synchronously. Once stator is loaded, all the process will be done by machine automatically, including winding, hooking, indexing.

(1)Specification

Working station	4
Stator OD	20~100mm
Stator ID	12~80mm
Stack length	5~70mm
Wire diameter	0.08~1.0mm
Spindle spacing	155mm
Drive servo	3000W 1 set
Indexing servo	2000W 2 sets
Arraying servo	750W 2 sets
Air source	7 kg/cm
Power supply	380V 50HZ 15A
Dimension	1000x1100x1700mm
Weight	680KG

(2) Application

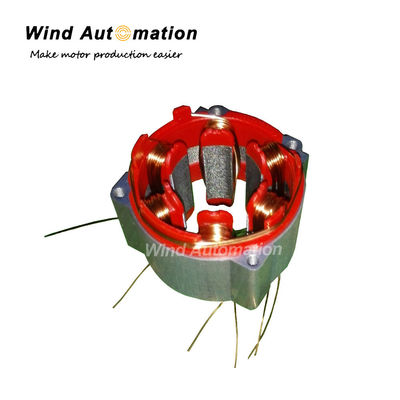

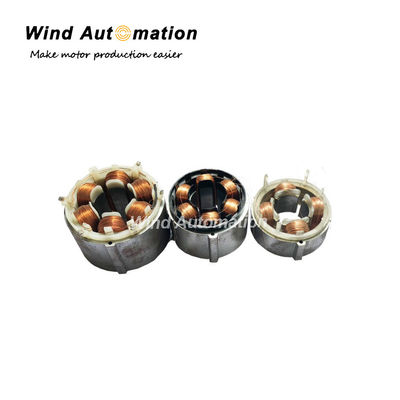

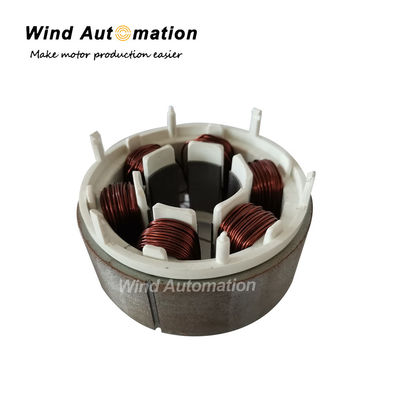

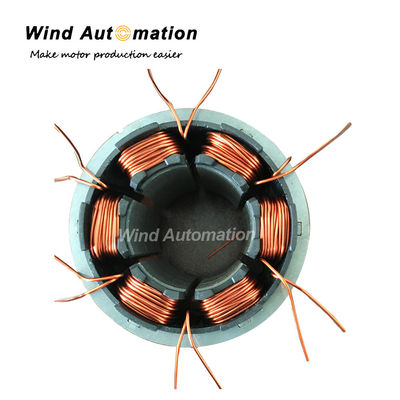

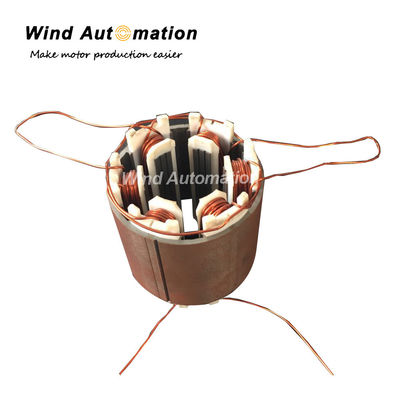

It is suitable for brushless motors, home appliance motors, medical equipment motors, industrial fans, pump motors, new energy vehicles motors, rotary transformers, sensors, servo motors, stepper motors, vacuum cleaner motors, power tool motors.

(3)Features
4 working stations to do synchronous winding
High quality level of the winding process
No-loading speed up to 800r/min
Wide application and strong applicability
High efficiency and production
Precise servo drive control of the wire feeding
Provide customized service

BLDC Motors Inslot Stator Needle Winding Machine Brushless Motor Winder
