Precision Middle Size 4 Stations BLDC Motor Needle Winding Machine

Description

Model NO.:	WIND-BLDC-4	Air Source:	7 Kg/Cm
Spindle Spacing:	155mm	Transport Package:	Wooden Case
Specification:	Middle Size	Trademark:	Wind Automation
Origin:	China	HS Code:	8479811000
Production Capacity:	100 Sets/Year

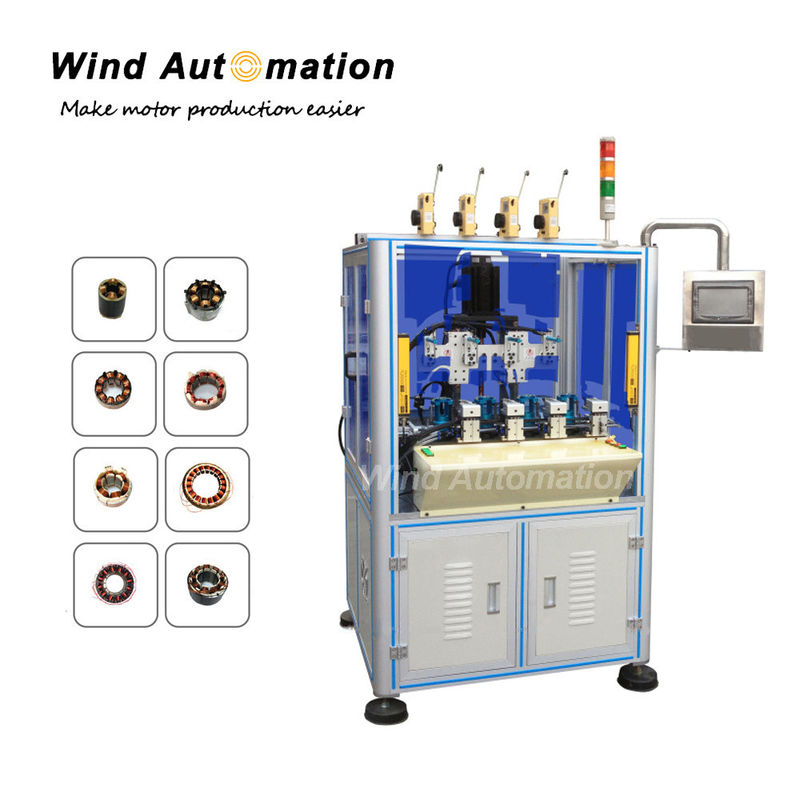

4 Stations BLDC Motor Needle Winding Machine

This needle winding machine has four working stations, it can wind 4 stators synchronously. It is widely used to produce coils for BLDC stators. Once stator is loaded, all the process will be done by machine automatically, including winding, hooking, indexing.

(1)Specification

Working station	4
Stator OD	20~100mm
Stator ID	12~80mm
Stack length	5~70mm
Wire diameter	0.08~1.0mm
Spindle spacing	155mm
Drive servo	3000W 1 set
Indexing servo	2000W 2 sets
Arraying servo	750W 2 sets
Air source	7 kg/cm
Power supply	380V 50HZ 15A
Dimension	1000x1100x1700mm
Weight	680KG

(2) Application
It is suitable for brushless motors, home appliance motors, medical equipment motors, industrial fans, pump motors, hybrid car vehicles motors, rotary transformers, sensors, servo motors, stepper motors, vacuum cleaner motors, power tool motors.

(3)Features
4 working stations to do synchronous winding
High quality level of the winding process
No-loading speed up to 800r/min
Wide application and strong applicability
High efficiency and production
Precise servo drive control of the wire feeding
Provide customized service

4 Stations BLDC Motor Needle Winding Machine
