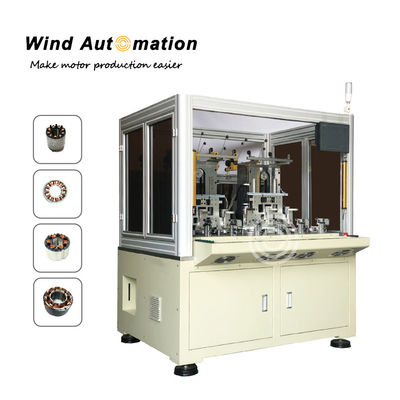

1400X1300X1670mm Middle Size BLDC Motor Needle Winding Machine with 6 Working Stations

I'm Online Chat Now

1400X1300X1670mm Middle Size BLDC Motor Needle Winding Machine with 6 Working Stations

1400X1300X1670mm Middle Size BLDC Motor Needle Winding Machine with 6 Working Stations

Description
Model NO.: WIND-BLDC-6 Weight: 950kg
Dimension: 1400X1300X1670mm Transport Package: Wooden Case
Specification: Middle Size Trademark: Wind Automation
Origin: China HS Code: 8479811000
Production Capacity: 100 Sets/Year

BLDC Motor Needle Winding Machine With 6 Working Stations
BLDC Motor Needle Winding Machine with 6 Working Stations
With 6 working stations, this BLDC motor winding machine can do high speed winding of 6 stators synchronously. Its winding speed is up to 1000r/min. Precise needle winding, high efficiency and wide slot range makes this machine a perfect choice for mass production.

(1)Specification
Working station 6
Stator OD 20~120mm
Stator ID 12~80mm
Stack length 5~80mm
Wire diameter 0.08~1.0mm
Spindle spacing 200mm
Spindle speed Up to 1000r/min
Drive servo 5000W 1 set
Indexing servo 3000W 6 sets
Arraying servo 750W 2 sets
Air source 6 kg/cm3
Power supply 380V  50HZ  15A
Dimension 1400x1300x1670mm
Weight 950KG


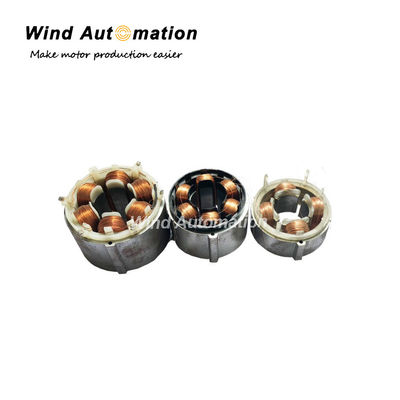

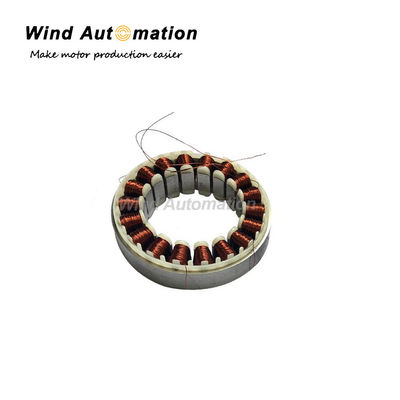

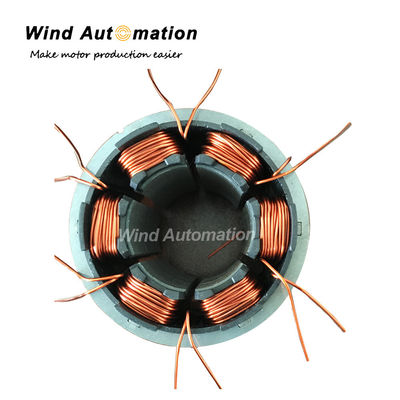

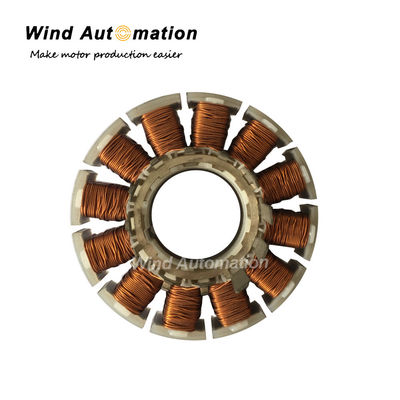

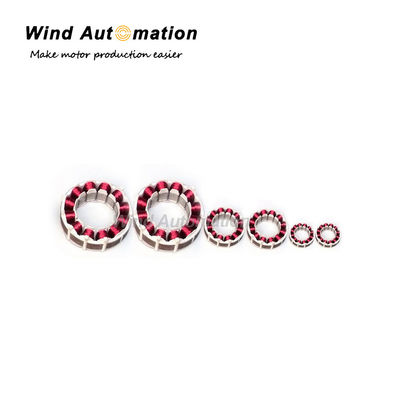

(2) Application
It is suitable for brushless motors,rotary transformers, sensors, industrial fans, pump motors, servo motors, stepper motors.



(3)Features
6 working stations to do synchronous winding
Wide stator slot range, up to 36 slots
No-loading speed up to 1000r/min
Precise needle winding control
High efficiency and production
Provide customized service
