Automatic 4 Stations BLDC Motor Stator Inslot Winding Machine for Precise Winding

Large Image : Automatic 4 Stations BLDC Motor Stator Inslot Winding Machine for Precise Winding

Product Details:

Contact Now

Automatic 4 Stations BLDC Motor Stator Inslot Winding Machine for Precise Winding

Description

Model NO.:	WIND-NR158	Weight:	800 Kg
Dimension:	1330X800X2000mm	After-Sales Service:	Engineers Avaiable To Service Overseas
Warranty:	12 Months	Transport Package:	Wooden Case
Specification:	Middle Size	Trademark:	Wind Automation
Origin:	China	HS Code:	8479811000
Production Capacity:	100 Sets/Year

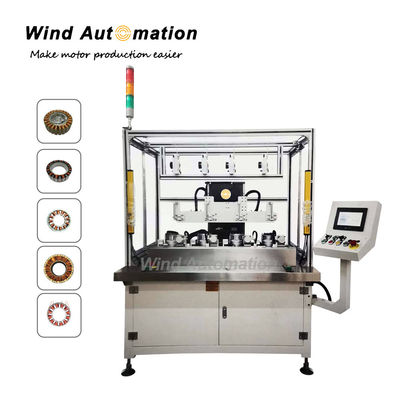

Automatic 4 stations BLDC Motor Stator Inslot Winding Machine

This automatic stator inslot winding machine is designed to winding coils for BLDC motor stator. It can automatically do winding, arraying, indexing, cutting, demolding. With a touch screen, all parameters can be displayed and programmed. Machine is easy to operate and manintain.

(1) Specification

Stator OD	Max 120mm
Stator ID	10~100mm
Stack length	Max 100mm
Stator weight	Max 3KG
Wire range	0.1-1.2mm
Winding speed	600rpm
Power	11 KW
Air source	0.4~0.7 MPa
Power supply	AC 380±10, 50/60HZ
Dimension	1330x800x2000mm
Weight	800KG

(2) Application
It is suitable for brushless motors, electric tool motors, refrigeration compression motors, home appliance motors.

(3) Features
Wide application and strong applicability
High efficiency and production
Precise servo drive control of the wire feeding
4 working stations to do synchronous winding
High quality level of the winding process
No-loading speed up to 600r/min
Provide customized service

(4) Operation process
Click mould open button, then put workpiece into the tooling.
Choose auto mode, then select edited product program.
Press start button with two hands, machine will start to do automatic winding.
After winding, machine will automatically reset.
Click mould open button, manual unload workpiece.

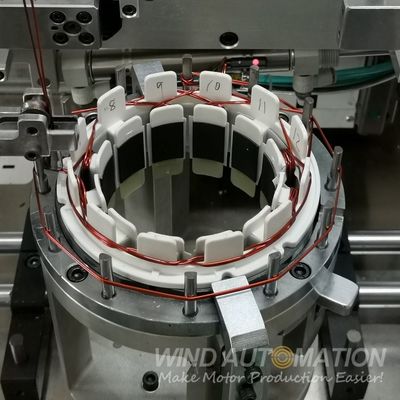

(5) Machine working station
Automatic 4 Stations BLDC Motor Stator Inslot Winding Machine
