WIND-NR148 Station Shroud and Needle Coil Winding for BLDC Motor 100 Sets/Year Materials

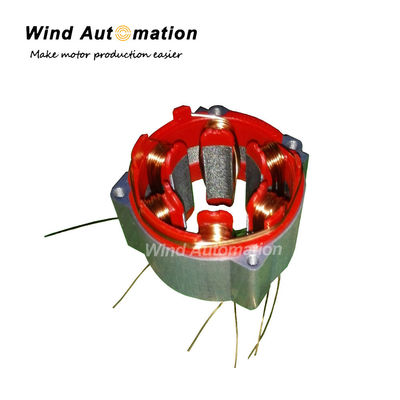

Large Image : WIND-NR148 Station Shroud and Needle Coil Winding for BLDC Motor 100 Sets/Year Materials

Product Details:

Contact Now

WIND-NR148 Station Shroud and Needle Coil Winding for BLDC Motor 100 Sets/Year Materials

Description

Model NO.:	WIND-NR148	Weight:	700 Kg
Dimension:	1000X800X2000mm	After-Sales Service:	Engineers Avaiable To Service Overseas
Warranty:	12 Months	Transport Package:	Wooden Case
Specification:	Middle Size	Trademark:	Wind Automation
Origin:	China	HS Code:	8479811000
Production Capacity:	100 Sets/Year

2 Station Shroud / Needle Coil Winding For BLDC Motor

The winding process of this needle coil winding machine is controlled by 4 servo control spindle, with no-loading speed up to 600r/min. Machine can diagnose fault, alarm for breakdown, and display on the touch screen. Moudle tooling design makes tooling changeover faster and easier.

(1) Specification

Working station	2
Stator ID	10~100mm
Stack length	10-100mm
Stator OD	10- 120mm
Wire range	0.1-1.2mm
Winding speed	400rpm
Power	8 KW
Air source	0.4~0.7 MPa
Power supply	AC 380±10, 50/60HZ
Dimension	1000x800x2000mm
Weight	700KG

(2) Application

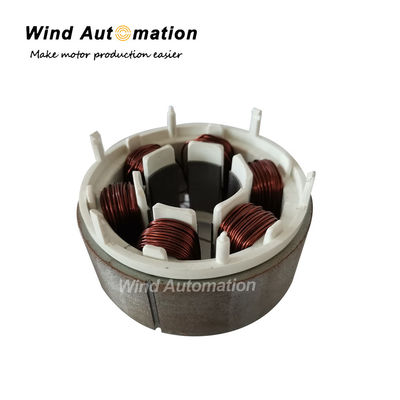

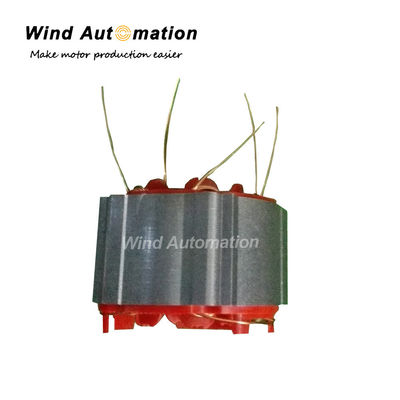

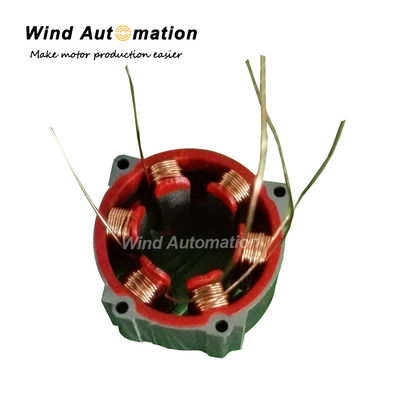

It is suitable for brushless motors.

(3) Features
4 servo control spindle
Moudle tooling design
High efficiency and production
Precise servo drive control of the wire feeding
2 working stations to do synchronous winding
High quality level of the winding process
No-loading speed up to 600r/min
Provide customized service

(4) Operation process
Click mould open button, then put workpiece into the tooling.
Choose auto mode, then select edited product program.
Press start button with two hands, machine will start to do automatic winding.
After winding, machine will automatically reset.
Click mould open button, manual unload workpiece.

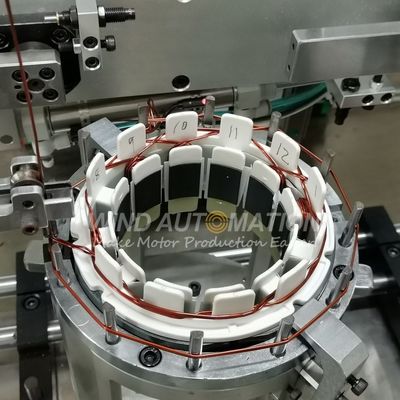

(5) Machine working station

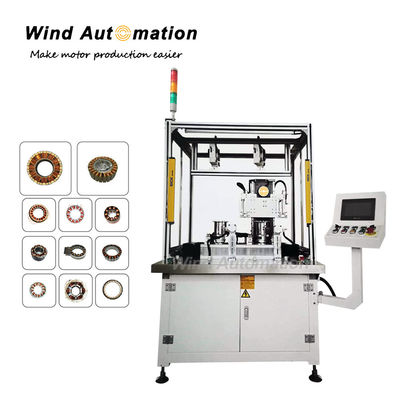

2 Station Shroud / Needle Coil Winding for BLDC Motor
