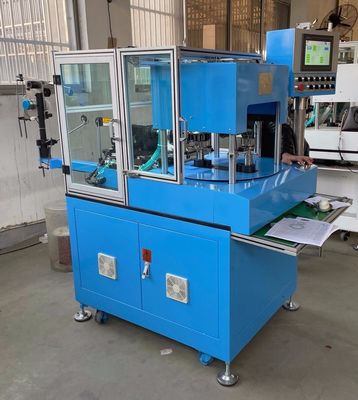

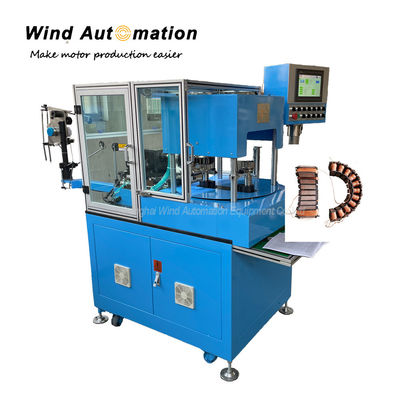

Middle Size Motorcycle Stator Winder WIND-2-TDS for Precise Coil and Magneto Winding

Large Image : Middle Size Motorcycle Stator Winder WIND-2-TDS for Precise Coil and Magneto Winding

Product Details:

Contact Now

Middle Size Motorcycle Stator Winder WIND-2-TDS for Precise Coil and Magneto Winding

Description

Model NO.:	WIND-2-TDS	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

Motorcycle Coil Winding Magneto Winding Outside Stator Winder

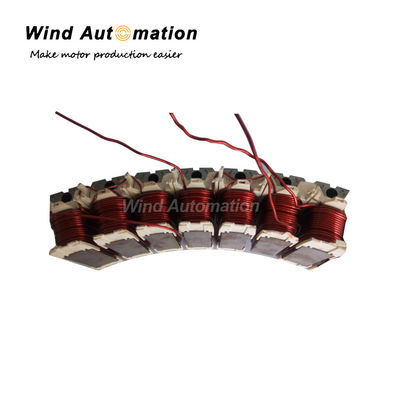

Magneto winding machine is designed to produce motorcycle magneto. It is easy to operate and change tooling.

(1)Specification

Wire diameter	0.45mm~1.25mm
Workpiece OD	70~250mm
Spindle	0~1500rpm
Pneumatic	Airtac
Air pressure	0.5-0.7Mpa
Capability	120pcs/shift(8h single station)
Spindle speed	0~1000 RPM
Turns No.	0-999
Winding motor	Mitsubshi 1000W servo motor
Arraying motor	Mitsubshi 400W servo motor
Indexing motor	Mitsubshi 400W servo motor
Power supply	AC 220 V, 50HZ

(2)Application
It is used to produce motorcycle magneto.

(3) Information needed for inquiry
Stator drawing
Stator winding drawing
Winding distribution drawing
Other technical requirement

Motorcycle Coil Winding Magneto Winding Outside Stator Winder
