Middle Size Aerospace Motor External Rotor Winding Machine for Precise Winding Process

Large Image : Middle Size Aerospace Motor External Rotor Winding Machine for Precise Winding Process

Product Details:

Contact Now

Middle Size Aerospace Motor External Rotor Winding Machine for Precise Winding Process

Description

Model NO.:	WIND-HMW	Warranty:	12 Months
Power:	220V	Transport Package:	Wooden Case
Specification:	Middle Size	Trademark:	Wind Automation
Origin:	China	HS Code:	8479811000
Production Capacity:	100 Sets/Year

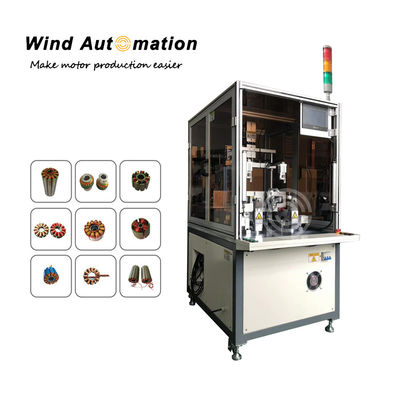

Aerospace Motor Drone Flyer Motor External Rotor Winding Machine

This external rotor winding machine is suitable for aerospace motor, twisting car motor rotor to do slot coil winding. It can do both distributed winding or centralized winding. With 2 stations, it can wind two stators with a slot width within 0.5~0.8mm automatically.

(1)Features
Wide application and model types
High quality level of the winding process
Quick change-over of tooling
2 working stations to do synchronous winding
Tungsten steel nozzle
Provide customized service

(2)Specification

Working station	2
Stator OD	7~100mm
Stack length	5~70mm
Slot number	2~36
Wire diameter	0.06~0.7mm
Arraying width	30mm
Spindle speed	0~2000 RPM
Controller	Motion controller
Power supply	AC 220 V, 50HZ
Dimension	850x800x1600mm
Weight	280KG

(3)Application

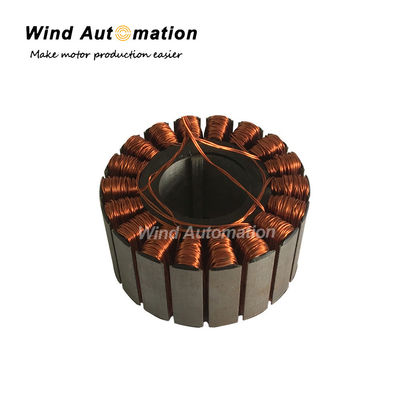

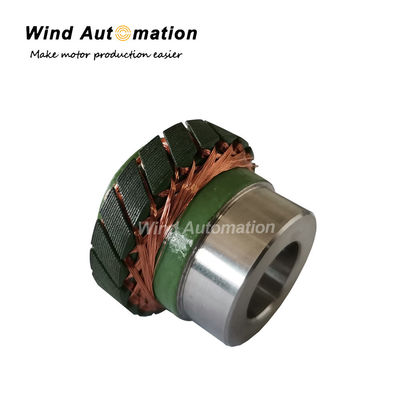

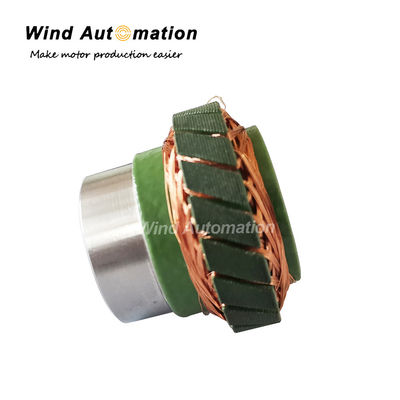

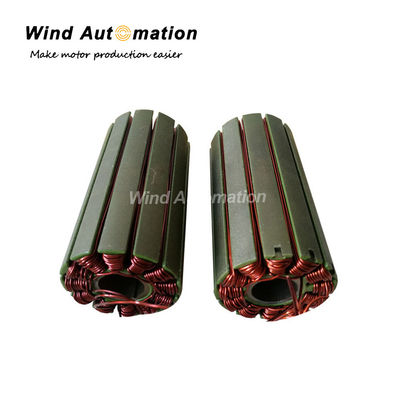

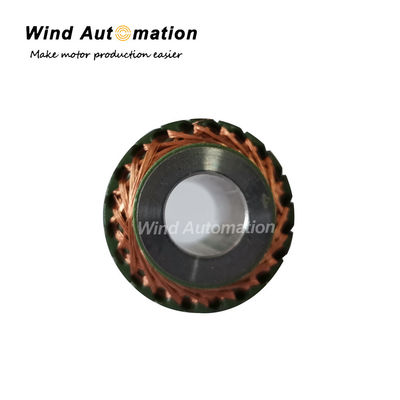

It is suitable for aerospace motor, twisting car motor, and other external rotors.

Aerospace Motor Drone Flyer Motor External Rotor Winding Machine
