Middle Size External Rotor Winding Machine Narrow Slot Width for Precision Winding

Large Image : Middle Size External Rotor Winding Machine Narrow Slot Width for Precision Winding

Product Details:

Contact Now

Middle Size External Rotor Winding Machine Narrow Slot Width for Precision Winding

Description

Model NO.:	WIND-6H	Warranty:	12 Months
Power:	220V	Transport Package:	Wooden Case
Specification:	Middle Size	Trademark:	Wind Automation
Origin:	China	HS Code:	8479811000
Production Capacity:	100 Sets/Year

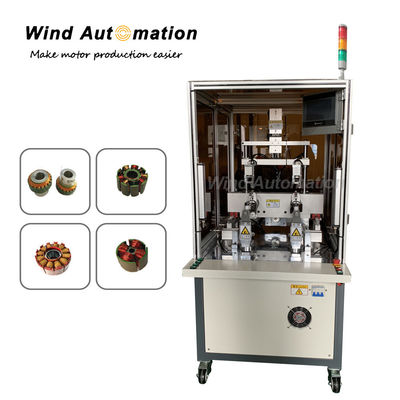

Flyer Winding Machine for External Rotor with Narrow Slot Width

This external rotor winding machine adopts flyer to do the winding, while the nozzle is made of tungsten steel. It has a wide application, suitable for external rotors with narrow slot width.

(1)Application

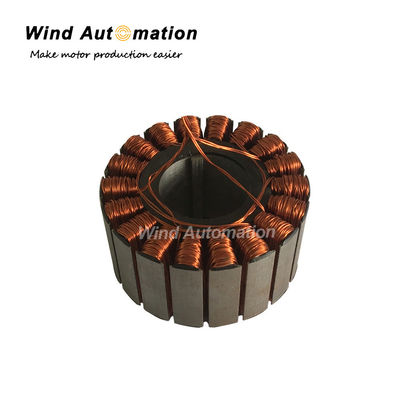

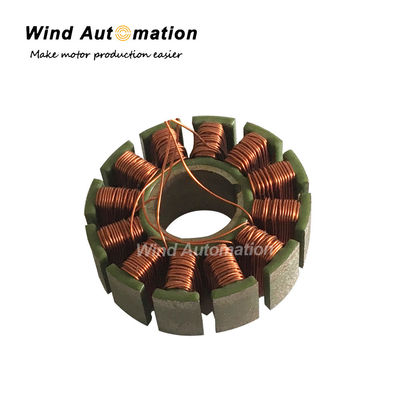

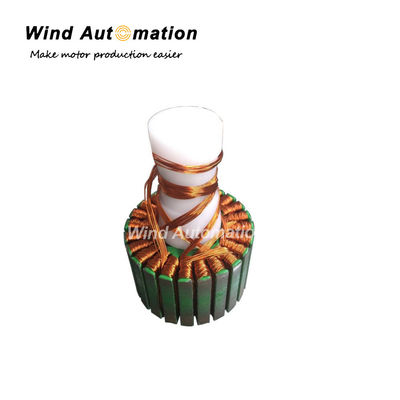

It is suitable for areospace motor, drone flyer motor, and other external rotors.

(2)Features
Wide application and model types
High quality level of the winding process
Quick change-over of tooling
2 working stations to do synchronous winding
Tungsten steel nozzle
Provide customized service

(3)Specification

Working station	2
Stator OD	7~100mm
Stack length	5~70mm
Slot number	2~36
Wire diameter	0.06~0.7mm
Arraying width	30mm
Spindle speed	0~2000 RPM
Controller	Motion controller
Power supply	AC 220 V, 50HZ
Dimension	850x800x1600mm
Weight	280KG
