100 Sets/Year External Armature Winding Machine for Middle Size BLDC Motor in Scooter

Large Image : 100 Sets/Year External Armature Winding Machine for Middle Size BLDC Motor in Scooter

Product Details:

Contact Now

100 Sets/Year External Armature Winding Machine for Middle Size BLDC Motor in Scooter

Description

Model NO.:	WIND-WR-2	Power Supply:	220V
Transport Package:	Wooden Case	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

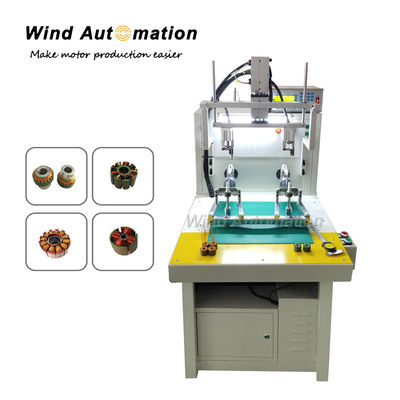

High Efficiency BLDC Motor External Armature Winding Machine for Scooter Motor

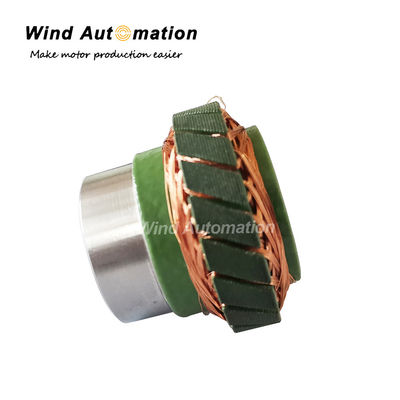

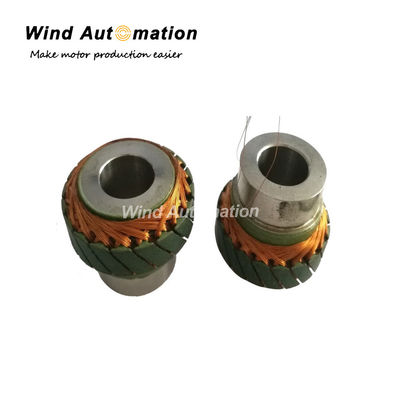

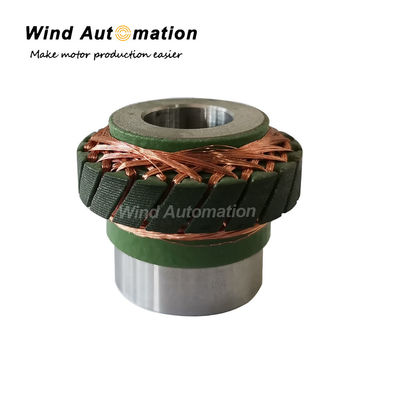

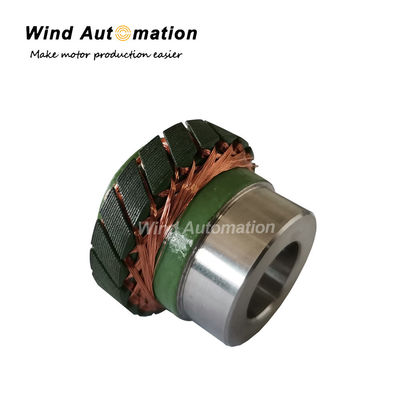

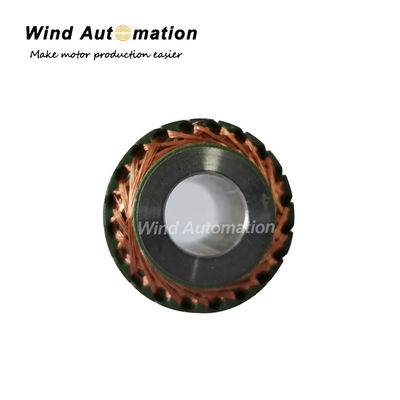

This BLDC winding machine is used to do inslot winding for external armature or BLDC motor stators. Multi-wire concentrated winding is available. Fixture module design enable fast demoulding.

(1)Specification

Working station	2
Stator OD	20~140mm
Stack length	5~50mm
Slot number	2~36
Wire diameter	0.1~0.7mm
Arraying width	30mm
Spindle speed	0~2000 RPM
Controller	Motion controller
Counting accuracy	±0.05 cycle
Power supply	AC 220 V, 50HZ

(2)Application
It is suitable for external armatures of aerospace motor, hybrid automobile car motor, fan motor, balance motor, scooter motor, torsion car motor.

(3)Features
High efficiency and production
2 working stations to do synchronous winding
Multi-wire concentrated winding available
Wide application and model types
High quality level of the winding process
Quick change-over of tooling
Provide customized service
PLC control, fault display

High Efficiency BLDC Motor External Armature Winding Machine for Scooter Motor
