220V Power Supply External Rotor Coil Winding Machine for Middle Size Balanced Motor

Large Image : 220V Power Supply External Rotor Coil Winding Machine for Middle Size Balanced Motor

Product Details:

Contact Now

220V Power Supply External Rotor Coil Winding Machine for Middle Size Balanced Motor

Description

Model NO.:	WIND-WR-2	Power Supply:	220V
Transport Package:	Wooden Case	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

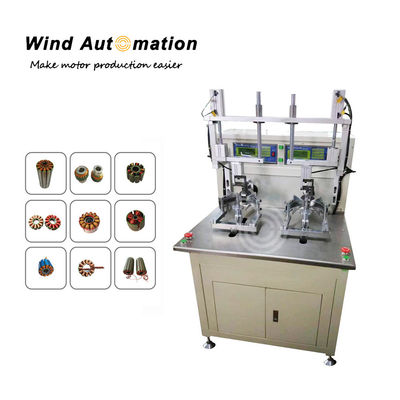

External Rotor Coil Flyer Winding Machine of Balance Motor

This external rotor winding machine adopts flyer to do inslot winding for various kinds of external rotors or BLDC motor stators. Fixture module design enable fast demoulding.

(1)Features
High efficiency and production
2 working stations to do synchronous winding
Multi-wire concentrated winding available
Wide application and model types
High quality level of the winding process
Quick change-over of tooling
Provide customized service
PLC control, fault display

(2)Specification

Working station	2
Stator OD	20~140mm
Stack length	5~50mm
Slot number	2~36
Wire diameter	0.1~0.7mm
Arraying width	30mm
Spindle speed	0~2000 RPM
Controller	Motion controller
Counting accuracy	±0.05 cycle
Power supply	AC 220 V, 50HZ

(3)Application

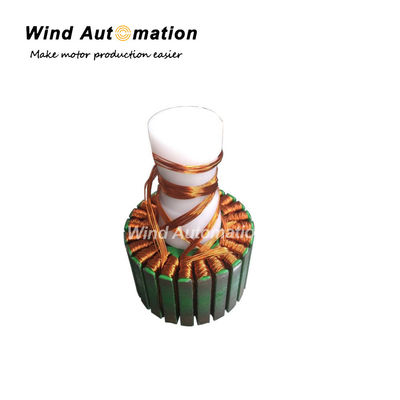

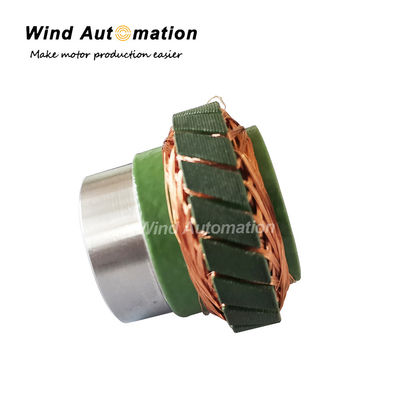

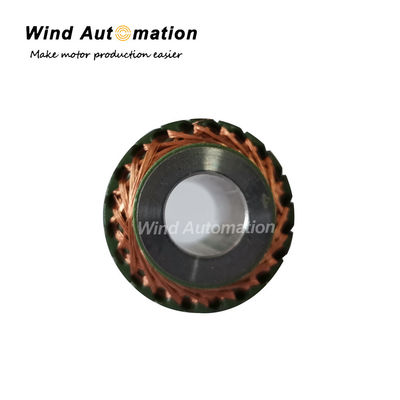

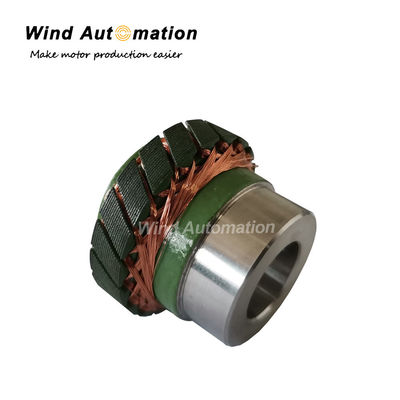

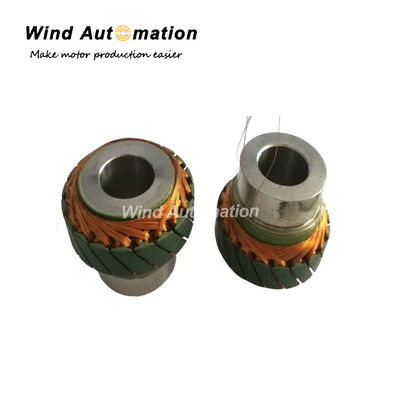

It is suitable for external armatures of aerospace motor, hybrid automobile car motor, fan motor, balance motor, scooter motor, torsion car motor.

External Rotor Coil Flyer Winding Machine of Balance Motor

Contact Details

Shanghai Wind Automation Equipment Co.,Ltd
