Middle Size 6-Station BLDC Motor Linear Stator Coil Needle Winder for and Production

Large Image : Middle Size 6-Station BLDC Motor Linear Stator Coil Needle Winder for and Production

Product Details:

Contact Now

Middle Size 6-Station BLDC Motor Linear Stator Coil Needle Winder for and Production

Description

Model NO.:	WIND-ZR-6	Weight:	700 Kg
Dimension:	1000X800X2000mm	Air Source:	0.4~0.7 MPa
Segment Winding Service:	Engineers Avaiable To Service Overseas	Transport Package:	Wooden Case
Specification:	Middle Size	Trademark:	Wind Automation
Origin:	China	HS Code:	8479811000
Production Capacity:	100 Sets/Year

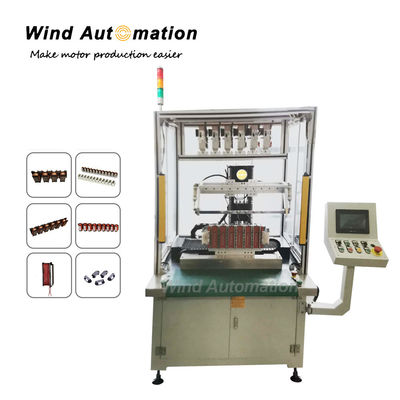

6 Working Stations BLDC Motor Linear Stator Coil Needle Winder

With 6 working stations, this linear stator coil needle winder greatly improves working efficiency and production cycle. Precise fast speed winding produces high quality level stators.

(1) Specification

Working station	6
Stator OD	Max 30mm
Stack length	Max 100mm
Stator weight	Max 0.5KG
Wire range	0.1-0.8mm
Winding speed	400rpm
Power	8 KW
Air source	0.4~0.7 MPa
Power supply	AC 380±10, 50/60HZ
Dimension	1000x800x2000mm
Weight	700KG

(2) Application

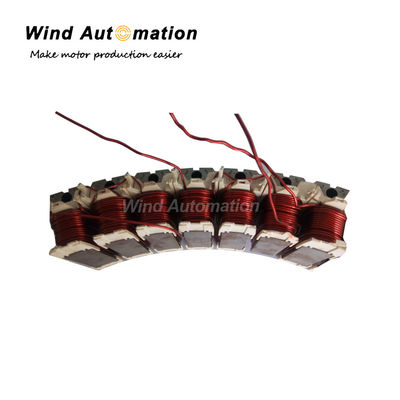

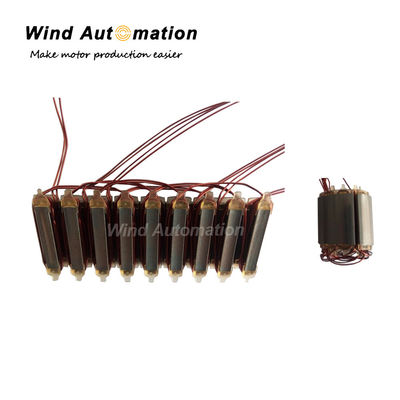

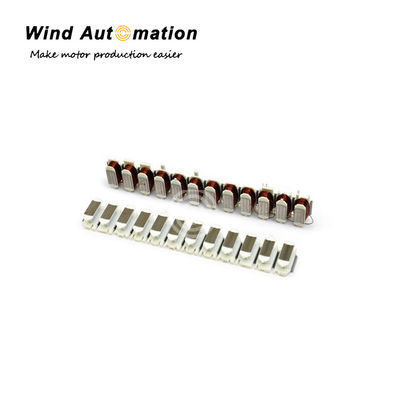

It is suitable for various kinds of open slot stators with high slot filling rate.

(3) Features
Friendly designed operator's interface
6 working stations to do synchronous winding
High efficiency and production
Precise servo drive control of the wire feeding
High quality level of the winding process
No-loading speed up to 400r/min
Provide customized service

6 Working Stations BLDC Motor Linear Stator Coil Needle Winder
