Middle Size Energy Motor Stator Insulation Paper Inserter with 100 Sets/Year Capacity

Large Image : Middle Size Energy Motor Stator Insulation Paper Inserter with 100 Sets/Year Capacity

Product Details:

Contact Now

Middle Size Energy Motor Stator Insulation Paper Inserter with 100 Sets/Year Capacity

Description

Specification:	Middle Size	Trademark:	Wind Automation
Origin:	China	HS Code:	8479811000
Production Capacity:	100 Sets/Year

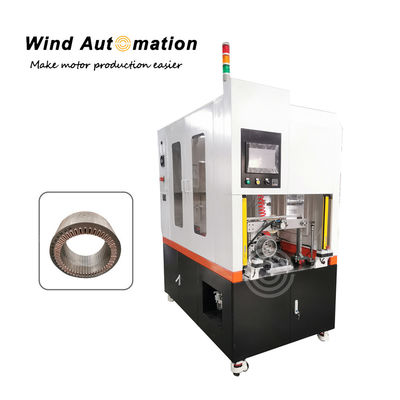

New Energy Motor Stator Insulation Paper Inserter

This paper inserter is a high productivity machine for inserting slot paper. It takes about 1.5s to insert one slot. It can do paper feeding, edge folding, edge forming, and paper inserting automatically.

(1) Specifications

Feeding length	0~10mm
Productivity	around 1.5s/slot(stack height 60mm)
Input Power Source	380V/50Hz
Dimension	900x 700x1950mm
Weight	600 KG

(2) Application

This machine is designed for insulation treatment for hybrid car motor, low duty car motor, automobile car motor or new energy vehicle motor stators.

(3) Features
Capable of forming "S" or "B" shape slot insulation
Wide stack height range
Suitable for any type of stator, regardless of diameter and slot number
Servo motor providing high indexing accuracy and fast movement of paper feeding
Automatic operation as a single unit or as a part of an automatic line
Precise Insulation paper length control
Easy for operation.
Parameter of different models can be edited, modified and displayed.
No deformation of stator and lamination after paper inserted
If paper jams occur, this paper inserting machine will automatically stop and alarm.

(4) Machine configuration
Mitsubishi PLC and servo motor
Weinview touch screen
AIRTAC or SMC pneumatic components
HIWIN linear guide
Schneider electrical components
New Energy Motor Stator Insulation Paper Inserter
